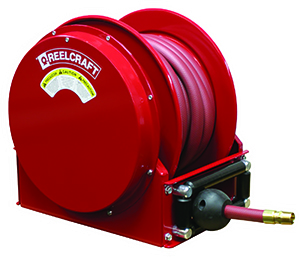

Reelcraft Series SD10000 Spring Retractable Low Profile Hose Reel with Bottom Wind
Features:
- 3 Pressure Choices Available:
- Low Pressure:
- 250 – 500 psi for use with Air and Water
- Maximum Temperature: With Hose 150°F (65°C) Without Hose 210°F (99°C)
- Medium Pressure:
- 1250 – 3000 psi for use with Oil
- Maximum Temperature 210°F (99°C)
- Vacuum Recovery Reels:
- 28 Hg ∼ 300 psi
- Vacuum Recovery Reel Capacities Based on Using SAE 100R4 Hose or Equivalent
- Maximum OD is 1.500″
- Maximum Temperature 210°F (99°C)
- Low Pressure:
- Series SD10000 Hose Reels are Designed for Larger Diameter 3/4″ – 1″ Hose up to 50 feet
- High Quality External Drive Spring and a Heavy Gauge All-Bolted Together Frame
- The Containerized External Drive Spring Assembly Offers Easier Handling During Maintenance
- The Most Compact Reel in its Class
- Ideal for Mounting in Truck Cabinets or Other Areas where Space is Limited
- Reel is Built with High Quality Industrial Grade Components for Superior Strength and Design
- High Impact UHMW Rollers
- Corrosion Resistant Powder Coat Paint
- 1 3/8″ Solid Main Shaft
- 4 – 5/8″ Tie Rods Maintain Reel Integrity and provide Added Support
- Ultra Low Profile Design for Mounting in Cabinetry
- Ductile Iron Fluid Path Parts
- Stainless Latch Spring and Widened Aluminum Ratchet/Pawl
- Torsion Spring for Longer Service Life
Low Pressure Hose Reel for Air & Water
| SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| SD13000-OLP-BW ♦ | – | – | 500 | – | 1 | 85 |
| SD13035-OLP-BW | 3/4 | 35 | 250 | 3/4 | 1 | 95 |
| SD13050-OLP-BW | 3/4 | 50 | 250 | 3/4 | 1 | 105 |
| SD14000-0LP-BW ♦ | – | – | 500 | – | 1 | 85 |
| SD14005-OLP-BW ♦ | – | – | 500 | – | 1 | 92 |
| SD14035-OLP-BW | 1 | 35 | 250 | 3/4 | 1 | 102 |
| SD14050-OLP-BW | 1 | 50 | 250 | 3/4 | 1 | 125 |
♦ Hose & Bumper NOT Included
Medium Pressure Hose Reel for Oil
| SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| SD13000-OMP-BW ♦ | – | – | 3000 | – | 1 | 85 |
| SD13035-OMP-BW | 3/4 | 35 | 1250 | 3/4 | 1 | 95 |
| SD13050-OMP-BW | 3/4 | 50 | 1250 | 3/4 | 1 | 105 |
♦ Hose & Bumper NOT Included
Vacuum Recovery Reel
| SKU | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
| SD13000-OVP-BW ♦ | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
| SD13035-OVP-BW | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
| SD13050-OVP-BW | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
| SD14000-OVP-BW ♦ | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
| SD14005-OVP-BW ♦ | 18 1/4 | 19 1/8 | 14 | 13 1/4 | 20 3/4 | 8 |
| SD14035-OVP-BW | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
| SD14050-OVP-BW | 18 1/4 | 18 1/4 | 14 | 11/1/4 | 18 3/4 | 8 |
♦ Hose & Bumper NOT Included
