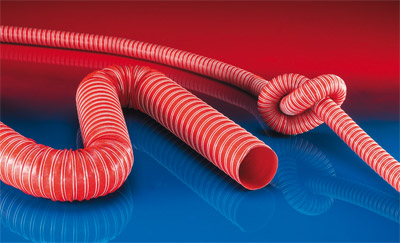

SIL-391-TWO Silicone Duct Hose

SIL 2

Applications:

Made In USA

  • Flexible Hose/Ducting for Hot and Cold Gases
  • Granulate/Plastic Dryer, Hot Air Dryer
  • Film Blowing Machine, Cooling Air at the Extrusion Tool
  • Air Supply:  UV Dryer, IR dryer
  • Clean Room Ventilation, Semiconductor Production Machine

Properties:

  • Silicone Hose
  • Fiber Reinforced
  • Very Good Heat Resistance
  • Conforms to RoHS guideline

Temperature Range:

  • – 95°F to 500°F
  • Short Time to 540°F

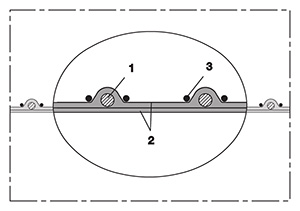

Design, Material:SIL-Cinstruction

  1.  Spring Steel Wire Integrated in the wall
  2.  Fabric-Reinforced Tape: Wall: Silicon Coated Glass Fabric
  3. Cord as Reinforcement







13 Feet SIL-391-TWO Silicone Hose

SKU ID Inch (mm) OD (in) Pressure psi Vacuum in HG Bending Radius Weight (lbs/ft)
013MM  ♦ (13) 5/8 43.50 21.85 3/8 0.045
022MM  ♦ (22) 1.00 43.50 21.25 0.55 0.115
0100  ♦ 1 1 1/8 40.60 20.95 0.69 0.130
0150 1.5 1.69 37.70 17.70 0.94 0.210
041MM  ♦ (41) 1.81 37.70 17.40 1.00 0.210
0200 2 2.20 37.70 15.35 1.20 0.240
0250 2.5 2.68 34.80 13.60 1.44 0.330
070MM  ♦ (70) 2.95 30.45 13.00 1.57 0.365
0300 3 3.19 30.45 12.70 1.69 0.390
080MM  ♦ (80) 3.35 30.45 12.40 1.75 0.410
0350 3.5 3.70 29.00 11.80 1.95 0.465
095MM  ♦ (95) 3.94 27.55 10.95 2.07 0.490
0400 4 4.21 27.55 10.35 2.20 0.515
108MM  ♦ (108) 4.49 26.10 9.75 2.36 0.545
0450 4.5 4.72 21.75 8.85 2.50 0.570
121MM  ♦ 121 5.00 21.75 7.10 2.62 0.600
0500 5 5.24 20.30 6.80 2.74 0.625
0600 6 6.22 17.40 5.00 3.20 0.805
0800 8 8.23 10.15 2.65 4.23 1.110

♦ NOT in Stock; Possible 2-3 Week Delivery
