SPW Loop Clamp Features & Sizing

SPW-200-BOX



  • Light to Medium Duty Steel Clamp
  • E.P.D.M. Cushion for Electrical Insulation and Vibration Absorption
  • Steel Clamps are Zinc Electroplated for Corrosion Resistance
  • Color-Silver w/Black Durable Cushion
  • Temperature Range: -50°F to +275°F

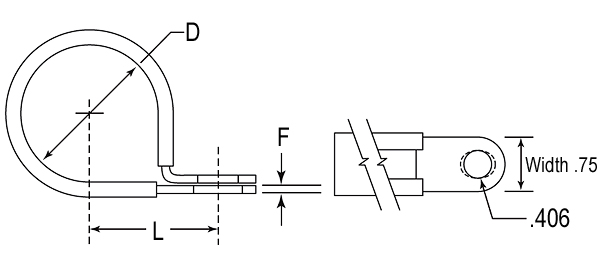

SPW Diagram

Part # Size D L F
SPW-04 1/4″ 0.25 0.656 0.031
SPW-06 3/8″ 0.375 0.718 0.031
SPW-07 7/16″ 0.438 0.73 0.031
SPW-08 1/2″ 0.5 0.781 0.031
SPW-09 9/16″ 0.563 0.8 0.031
SPW-10 5/8″ 0.625 0.843 0.031
SPW-12 3/4″ 0.75 0.906 0.031
SPW-14 7/8″ 0.875 0.968 0.031
SPW-16 1″ 1 1.031 0.031
SPW-18 1-1/8″ 1.125 1.093 0.05
SPW-20 1-1/4″ 1.25 1.14 0.05
SPW-24 1-1/2″ 1.5 1.28 0.05
SPW-26 1-5/8″ 1.625 1.35 0.05
SPW-28 1-3/4″ 1.75 1.41 0.05
SPW-30 1-7/8″ 1.875 1.47 0.05
SPW-32 2″ 2 1.53 0.05
SPW-36 2-1/4″ 2.25 1.66 0.05
SPW-40 2-1/2″ 2.5 1.78 0.05
SPW-48 3″ 3 1.969 0.05
