Stainless Steel Hardware Twin Smoothie Beta Clamps



BETA - Twin Smooth-200-BOX



  • Ideal for General Duty Applications where there is a need to Reduce Wear on Hose Connection caused by Vibration and Surge
  • Stainless Steel Hardware
  • Chamfered and Smooth Core Protects Hose Cover and Extends the Life of the Hose
  • Uses Standard Twin Hardware
  • Reduces Wear on Hose Connection caused by Vibration & Surge



Clamp Installation Instructions

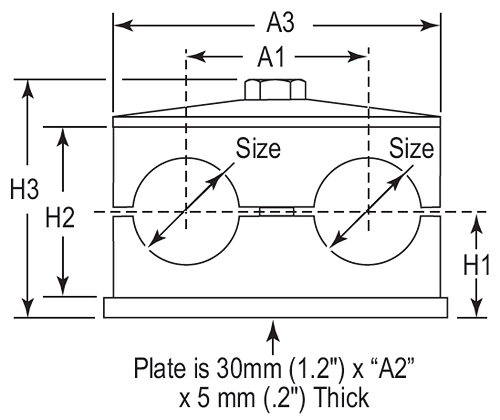

Diagram


Group SAE 100R1 Hose Size Dimensions – inch (mm) Wt Bolt
D A1 A2 A3 H1 H2 H3
2 1/4″ 0.53 1.14 2.16 2.08 0.70 1.02 1.71 .31 5/16″-18
x 1-3/8″
3/8″ 0.69
3 1/2″ 0.81 1.41 2.75 2.63 0.92 1.45 2.14 .39 5/16″-18
x 1-3/4″
4 5/8″ 0.93 1.77 3.34 3.22 1.02 1.65 2.34 .49 5/16″-18
x 2″
3/4″ 1.10
5 1″ 1.42 2.20 4.33 4.17 1.25 2.12 2.81 .65 5/16″-18
x 2-3/8″
