SSN Loop Clamp Features & Sizing



SSN Clamp

  • Medium Duty Steel Clamp That can be Slipped Over a Tube/Wire and Closed with a Bolt at Sssembly
  • Holes Provide Easy Alignment
  • Its Pre-Developed Shape Allows for Proper Closing and Excellent Fit
  • Stainless Steel

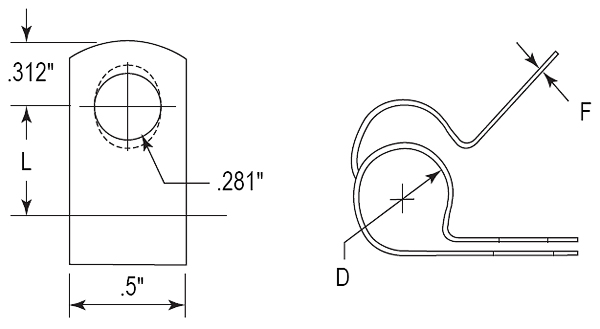

SSN Diagram


SSN Stainless Steel ½” Wide
Part # Size
(inches)
Dimensions (inches)
D L F
SSN-03 3/16 0.187 0.500 0.032
SSN-04 1/4 0.250 0.531
SSN-05 5/16 0.312 0.562
SSN-06 3/8 0.375 0.593
SSN-08 1/2 0.500 0.656 0.048
SSN-09 9/16 0.562 0.687
SSN-10 5/8 0.625 0.718
SSN-12 3/4 0.750 0.781
SSN-14 7/8 0.875 0.843
SSN-16 1 1.000 0.906
SSN-18 1-1/8 1.125 0.968
