Standard Series Worm Gear Clamps

Features & Sizing



WG-SS-200-BOX



Engineered For Tough Installation

  • Rounded Edges to Protect the Hose
  • Efficient Three Piece Construction
  • No Spot Welds to Corrode
  • Easily Installed With Screwdriver, Nut Driver, or Socket Wrench
  • Screws Feature Deep Slots for Quick Installation
  • Meets or Exceeds SAE Torque Specifications



Partial Stainless

This Clamp Has a 1/2″ Stainless Steel Band With Plated 5/16″ Slotted Hex Head Screw and Housing. It is Recommended for Most Applications.



All Stainless

This Super Quality 300 Series 1/2″ Band and Housing is Matched With a 300 Series 5/16″ Slotted Hex Head Screw. This Clamp is Highly Corrosion Resistant, Well Suited for Marine Applications, and Is Low in Magnetic Permeability.

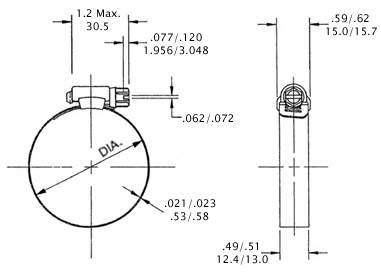

Dimensions Diagram

Partial Stainless Part # Stainless  Steel  Part# Clamp Diameter Min. Clamp Diameter Max.
WGW-006 WGW-006SS 3/8″ 7/8″
WGW-008 WGW-008SS 7/16″ 1″
WGW-010 WGW-010SS 9/16″ 1-1/16″
WGW-012 WGW-012SS 9/16″ 1-1/4″
WGW-016 WGW-016SS 11-16″ 1-1/2″
WGW-020 WGW-020SS 3/4″ 1-3/4″
WGW-024 WGW-024SS 1-1/16″ 2″
WGW-028 WGW-028SS 1-5/16″ 2-1/4″
WGW-032 WGW-032SS 1-9/16″ 2-1/2″
WGW-036 WGW-036SS 1-13/16″ 2-3/4″
WGW-040 WGW-040SS 2-1/16″ 3″
WGW-044 WGW-044SS 2-5/16″ 3-1/4″
WGW-048 WGW-048SS 2-9/16″ 3-1/2″
WGW-052 WGW-052SS 2-13/16″ 3-3/4″
WGW-056 WGW-056SS 3-1/16″ 4″
WGW-060 WGW-060SS 3-5/16″ 4-1/4″
WGW-064 WGW-064SS 3-9/16″ 4-1/2″
WGW-072 WGW-072SS 4-1/16″ 5″
WGW-080 WGW-080SS 4-5/8″ 5-1/2″
WGW-088 WGW-088SS 4-3/32″ 6″
WGW-096 WGW-096SS 4-1/2″ 6-1/2″
WGW-104 WGW-104SS 5″ 7″
WGW-116 WGW-116SS 5-3/4″ 7-3/4″
WGW-128SS 5-1/2″ 8-7/16″
WGW-148SS 6-3/4″ 9-11/16″
WGW-152SS 7″ 9-15/16″
WGW-160SS 7-1/2″ 10-7/16″
WGW-192SS 9-1/2″ 12-7/16″
WGW-224SS 11-1/2″ 14-7/16″
WGW-264SS 14″ 16-15/16″
