78 Series Hose End Crimp Dimensions

HF-78 Hose End Dash Size Parker 78 Series
1.430 -12 1.430
1.430 -16 1.740
1.430 -20 2.150
1.740 -24 2.450
1.740 -32 3.035

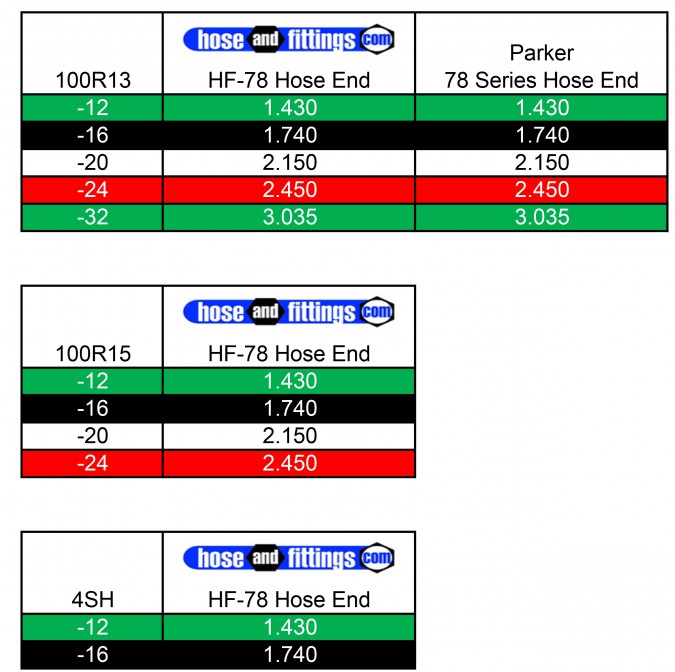

78 Series Crimp Specifications



How to measure a hydraulic crimp



Check You Crimp

After you crimp your hose, get your calipers out and confirm that your crimp matches the chart.  Avoid a failed hose end leaking or worst yet, a blow off.
