U Bolt Assembly Features & Sizing

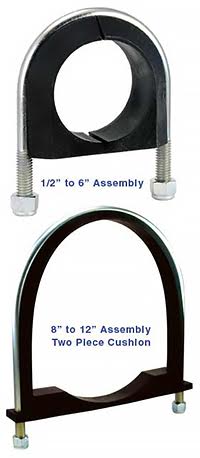

ubolt





  • Designed for Tough Jobs
  • Secures Pipe Runs to any Flat Surface
  • Cushion Design Provides Total Load Distribution
  • U Bolt Traps and Secures the Cushion in Place to Prevent Lateral Movement
  • Nylon Lock Nuts Provide a Positive Lock

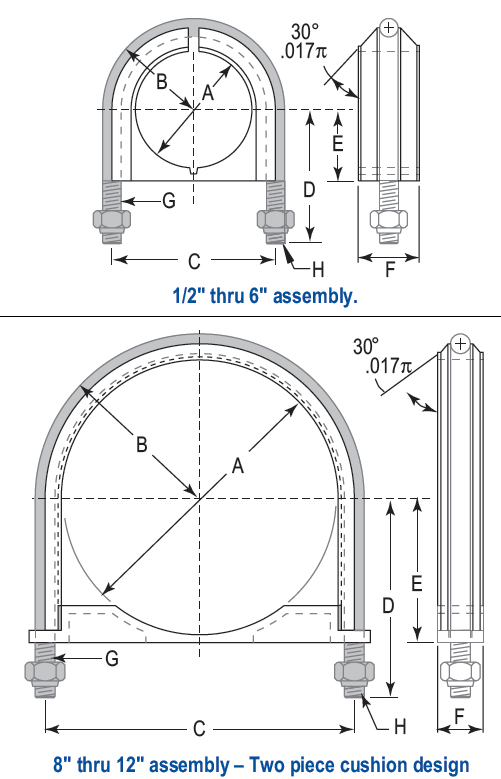

Diagram


Steel
Part #
Stainless
Part #
Pipe
Size
Nom.
(in)
Tube
Size
O.D.
(in)
Dimensions (inches)
A
Dia.
B
Rds.
C D E F G H
UB008PA UB008PA-SS ½ 0.84 0.80 1.60 1.5 0.67 0.68 1/4 1/4-20
UNC-2B
UB014TA UB014TA-SS 7/8 0.88 0.80 1.60 1.5 0.67
UB012PA UB012PA-SS ¾ 1.05 0.90 1.80 1.6 0.78
UB016TA UB016TA-SS 1 1.00 0.90 1.80 1.6 0.78
UB020TA UB020TA-SS 1.25 1.02 2.05 1.7 0.91
UB016PA UB016PA-SS 1 1.31 1.02 2.05 1.7 0.91
UB022TA UB022TA-SS 13/8 1.38 1.02 2.05 1.7 0.91
UB020PA UB020PA-SS 1.66 1.27 2.55 2.1 1.08 1.24 3/8 3/8-16
UNC-2B
UB024PA UB024PA-SS 1.90 1.40 2.80 2.2 1.19
UB032PA UB032PA-SS 2 2.37 1.67 3.35 2.5 1.45
UB040PA UB040PA-SS 2.87 1.95 3.90 3.0 1.69 1/2 1/2-13
UNC-2B
UB048PA UB048PA-SS 3 3.50 2.27 4.55 3.3 2.00
UB056PA UB056PA-SS 4.00 2.52 5.05 3.7 2.25
UB064PA UB064PA-SS 4 4.50 2.50 5.50 3.9 2.50
UB080PA UB080PA-SS 5 5.56 3.25 6.56 4.5 3.03
UB096PA UB096PA-SS 6 6.62 3.87 7.75 5.4 3.56 1.44 5/8 5/8-11
UNC-2B
UB128PA UB128PA-SS 8 8.62 4.85 9.82 6.4 4.56
UB160PA UB160PA-SS 10 10.75 6.08 12.16 7.7 5.68 1.65 3/4 3/4-10
UNC-2B
UB192PA UB192PA-SS 12 12.75 7.13 14.25 8.7 6.68
