Outside Hole Z Clamp Bracket Unit
- The Outside Hole Z Clamp Unit Features an Anchor Bolt Between each of the Inserts and an Anchor Bolt Outside the Last Inserts
- The Junction Adapter provides Break Points in Lines allowing for Shorter Hose and Tubing Runs Reducing Leaks at Connection Points by Securing the Adapter against Vibration within the Z Clamp Units
- Stackable for Space Conservation
- Maintains Consistent Center Line Dimensions between Lines both Horizontally & Vertically (in Stacking Application)
- Mix & Match Pipe, Tube, Hose and Junction Adapters
- Suited for All Types of Hydraulic Applications
- Available in Standard and Outside Hole Mounting Configurations
Clamp Installation Instruction

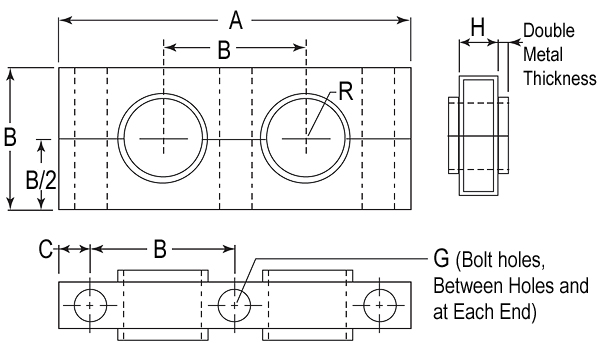

| Part # | # of Holes |
# of Bolts |
A (in.) |
C (in.) |
G (in.) |
H (in.) |
R (in.) |
|---|---|---|---|---|---|---|---|
| HAC-1 Series 1½” (B=1½”) | |||||||
| HAC-1-01-02 | 1 | 2 | 2.188 | 0.344 | 0.344 | 0.550 | 0.422 |
| HAC-1-02-03 | 2 | 3 | 3.797 | 0.391 | |||
| HAC-1-03-04 | 3 | 4 | 5.297 | 0.391 | |||
| HAC-1-04-05 | 4 | 5 | 6.797 | 0.391 | |||
| HAC-1-05-06 | 5 | 6 | 8.297 | 0.391 | |||
| HAC-2 Series 2″ (B=2″) | |||||||
| HAC-2-01-02 | 1 | 2 | 2.656 | 0.328 | 0.344 | 0.550 | 0.594 |
| HAC-2-02-03 | 2 | 3 | 4.766 | 0.391 | |||
| HAC-2-03-04 | 3 | 4 | 6.797 | 0.391 | |||
| HAC-2-04-05 | 4 | 5 | 8.297 | 0.391 | |||
| HAC-3 Series 3″ (B=3″) | |||||||
| HAC-3-01-02 | 1 | 2 | 4.000 | 0.500 | 0.406 | 0.750 | 1.063 |
| HAC-3-02-03 | 2 | 3 | 6.859 | 0.422 | |||
| HAC-3-03-04 | 3 | 4 | 9.859 | 0.422 | |||
| HAC-3-04-05 | 4 | 5 | 12.859 | 0.422 | |||
| NOTE: Inserts or Hardware not included. | |||||||
