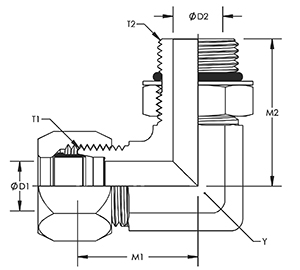

C6801 Series
Description: Compression x SAE Male BOSS 90° Adapter
SAE: 080220
Similar Products
Parker – C5BU
Weatherhead – 7515
| HnF SKU | Y Hex | T1 | M1 | D1 | T2 | M2 | D2 |
| C6801-02-02 | 0.438 | 5/16-24 | 0.77 | 0.094 | 5/16-24 | 0.91 | 0.094 |
| C6801-04-04 | 0.438 | 7/16-20 | 0.89 | 0.203 | 7/16-20 | 1.03 | 0.203 |
| C6801-04-06 | 0.563 | 7/16-20 | 1.03 | 0.203 | 9/16-18 | 1.25 | 0.281 |
| C6801-05-05 | 0.563 | 1/2-20 | 0.95 | 0.234 | 1/2-20 | 1.13 | 0.234 |
| C6801-06-06 | 0.563 | 9/16-18 | 1.05 | 0.281 | 9/16-18 | 1.25 | 0.281 |
| C6801-06-08 | 0.750 | 9/16-18 | 1.14 | 0.281 | 3/4-16 | 1.45 | 0.422 |
| C6801-06-10 | 0.875 | 9/16-18 | 1.24 | 0.281 | 7/8-14 | 1.70 | 0.500 |
| C6801-08-06 | 0.750 | 3/4-16 | 1.25 | 0.422 | 9/16-18 | 1.32 | 0.281 |
| C6801-08-08 | 0.750 | 3/4-16 | 1.25 | 0.422 | 3/4-16 | 1.45 | 0.422 |
| C6801-08-10 | 0.875 | 3/4-16 | 1.35 | 0.422 | 7/8-14 | 1.70 | 0.500 |
| C6801-08-12 | 1.063 | 3/4-16 | 1.43 | 0.422 | 1-1/16-12 | 1.94 | 0.656 |
| C6801-10-10 | 0.875 | 7/8-14 | 1.42 | 0.500 | 7/8-14 | 1.70 | 0.500 |
| C6801-10-12 | 1.063 | 7/8-14 | 1.50 | 0.500 | 1-1/16-12 | 1.94 | 0.656 |
| C6801-12-08 | 1.063 | 1-1/16-12 | 1.58 | 0.656 | 3/4-16 | 1.62 | 0.422 |
| C6801-12-12 | 1.063 | 1-1/16-12 | 1.58 | 0.656 | 1-1/16-12 | 1.94 | 0.656 |
| C6801-16-16 | 1.313 | 1-5/16-12 | 1.73 | 0.875 | 1-5/16-12 | 2.05 | 0.875 |
| C6801-20-20 | 1.625 | 1-5/8-12 | 1.89 | 1.094 | 1-5/8-12 | 2.25 | 1.094 |
| C6801-24-24 | 1.875 | 1-7/8-12 | 2.02 | 1.344 | 1-7/8-12 | 2.39 | 1.344 |
