HF10143

Male Pipe Hose End

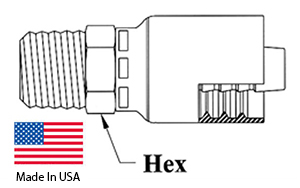

HF10143 Dimensions



HnF Part Number Equilivant Manufacturer & Part Number Pipe Size (inch) Thread Size    (inch – threads / inch) Hose ID (inch) Hex Size (inch)
HF10143-2-4 Parker 10143-2-4 1/8 1/8-27 1/4 9/16
HF10143-4-4 Parker 10143-4-4 1/4 1/4-18 1/4 9/16
HF10143-6-4 Parker 10143-6-4 3/8 3/8-18 1/4 11/16
HF10143-8-4 Parker 10143-8-4 1/2 1/2-14 1/4 7/8
HF10143-4-6 Parker 10143-4-6 1/4 1/4-18 3/8 3/4
HF10143-6-6 Parker 10143-6-6 3/8 3/8-18 3/8 3/4
HF10143-8-6 Parker 10143-8-6 1/2 1/2-14 3/8 7/8
HF10143-4-8 Parker 10143-4-8 1/4 1/4-18 1/2 7/8
HF10143-6-8 Parker 10143-6-8 3/8 3/8-18 1/2 7/8
HF10143-8-8 Parker 10143-8-8 1/2 1/2-14 1/2 7/8
HF10143-12-8 Parker 10143-12-8 3/4 3/4-14 1/2 1-1/8
HF10143-8-10 Parker 10143-8-10 1/2 1/2-14 5/8 15/16
HF10143-12-10 Parker 10143-12-10 3/4 3/4-14 5/8 1-1/8
HF10143-8-12 Parker 10143-8-12 1/2 1/2-14 3/4 1-1/8
HF10143-12-12 Parker 10143-12-12 3/4 3/4-14 3/4 1-1/8
HF10143-16-12 Parker 10143-16-12 1 1-11 1/2 3/4 1-3/8
HF10143-12-16 Parker 10143-12-16 3/4 3/4-14 1 1-3/8
HF10143-16-16 Parker 10143-16-16 1 1-11 1/2 1 1-3/8
HF10143-20-20 Parker 10143-20-20 1-1/4 1 1/4-11 1/2 1-1/4 1-11/16
HF10143-24-24 Parker 10143-24-24 1-1/2 1 1/2-11 1/2 1-1/2 2
HF10143-32-32 Parker 10143-32-32 2 2-11 1/2 2 2-1/2
