* – Brass nipple, steel nut, shell.

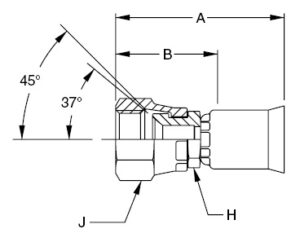

~ – These fittings have a dual seat that accepts both the JIC (37°) and SAE (45°) male configurations.
S – Steel nipple, steel nut, shell.
C – All components 303 stainless steel.
| SKU | S | C | Thread Size | Hose Size (in.) | Tube Size (in.) | A | Cutoff Allow. B | H (hex) | J (hex) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10691N-4-4 | + | + | 7/16-20 | -4 | 1/4 | 1.43in | 36mm | 7/8in | 22mm | 3/8in | 9/16in |
| 10691N-5-5 | + | + | 1/2-20 | -5 | 5/16 | 1.56in | 40mm | 15/16in | 24mm | 7/16in | 5/8in |
| 10691N-6-6 | + | + | 9/16-18 | -6 | 3/8 | 1.63iin | 41mm | 1in | 25mm | 1/2in | 11/16in |
| 10691N-6-8 | 9/16-18 | -8 | 1/2 | 1.69in | 43mm | 1in | 25mm | 9/16in | 11/16in | ||
| 10691N-8-8 | + | + | 3/4-16 | -8 | 1/2 | 1.89in | 48mm | 1-3/16in | 30mm | 11/16in | 7/8in |
| 10691N-8-10 | + | 3/4-16 | -10 | 5/8 | 1.86in | 58mm | 1-1/8in | 29mm | 3/4in | 7/8in | |
| 10691N-10-10 | + | + | 7/8-14 | -10 | 5/8 | 2.03in | 52mm | 1-5/16in | 33mm | 13/16in | 1in |
| 10691N-12-12 | + | + | 1-1/16 – 12 | -12 | 3/4 | 2.12in | 54mm | 1-5/16in | 33mm | 1in | 1-1/4in |
| 10691N-16-16 | + | + | 1-5/16 – 12 | -16 | 1 | 2.45in | 62mm | 1-9/16in | 40mm | 1-1/4in | 1-1/2in |
