HF11343

Male Pipe Swivel Hose End

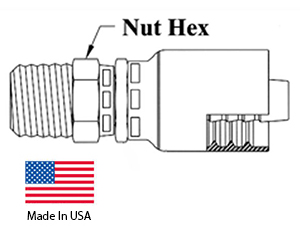

HF11343 Dimensions



HnF Part Number Equilivant Manufacuturer & Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
HF11343-2-4 Parker 11343-2-4 1/8 1/8-27 1/4 5/8
HF11343-4-4 Parker 11343-4-4 1/4 1/4-18 1/4 5/8
HF11343-6-4 Parker 11343-6-4 3/8 3/8-18 1/4 3/4
HF11343-4-6 Parker 11343-4-6 1/4 1/4-18 3/8 3/4
HF11343-6-6 Parker 11343-6-6 3/8 3/8-18 3/8 3/4
HF11343-8-6 Parker 11343-8-6 1/2 1/2-14 3/8 7/8
HF11343-6-8 Parker 11343-6-8 3/8 3/8-18 1/2 3/4
HF11343-8-8 Parker 11343-8-8 1/2 1/2-14 1/2 7/8
HF11343-12-12 Parker 11343-12-12 3/4 3/4-14 3/4 1-1/4
HF11343-16-16 Parker 11343-16-16 1 1-11 1/2 1 1-3/8
Note: Swivel for Installation Purpose Only.  Leakage May Occur at Low Pressure.
