HF12843

Male Inverted Flare Swivel Hose End

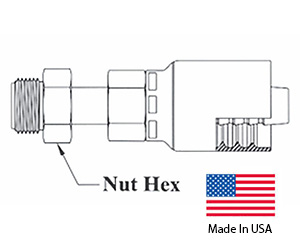

HF12843 Dimensions

HnF Part Number Equilivant Manufacuturer & Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Nut (inch)
HF12843-3-4 Parker 12843-3-4 3/16 3/8-24 1/4 3/8
HF10643-4-4 Parker 10643-4-4 1/4 7/16-24 1/4 7/16
HF10643-5-4 Parker 10643-5-4 5/16 1/2-20 1/4 1/2
HF10643-4-6 Parker 10643-4-6 1/4 7/16-24 3/8 7/16
HF10643-5-6 Parker 10643-5-6 5/16 1/2-20 3/8 1/2
HF10643-6-6 Parker 10643-6-6 3/8 5/8-18 3/8 5/8
HF10643-7-6 Parker 10643-7-6 7/16 11/16-18 3/8 11/16
HF10643-8-8 Parker 10643-8-8 1/2 3/4-18 1/2 3/4
