Carbon Steel Forged Raised Face Threaded Flanges

150# (ANSI B16.56 & ASTM A-105)

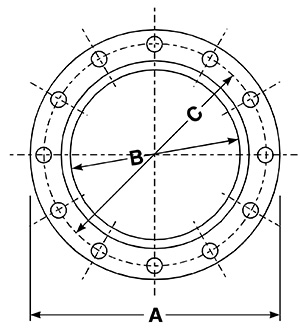

Raised Face Threaded Flanges Line Drawing-300



HnF Part Number Size (inch) A (inch) B (inch) C (inch) Thickness (inch) Bolt Holes Hole Diameter (inch)
150#-4-150 1-1/2 5 1.95 3-7/8 7/8 4 5/8
150#-4-200 2 6 2.44 4-3/4 1 4 3/4
150#-4-250 2-1/2 7 2.94 5-1/2 1-1/8 4 3/4
150#-4-300 3 7-1/2 3.57 6 1-1/4 4 3/4
150#-8-400 4 9 4.57 7-1/2 1-3/8 8 3/4
150#-8-500 5 10 5.66 8-1/2 1-3/8 8 7/8
150#-8-600 6 11 6.72 9-1/2 1-1/2 8 7/8
