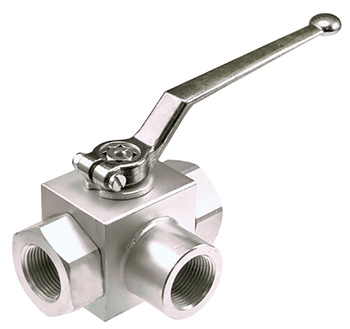

3 Way 1 Pressurized Port Threaded Ball Valve

3PBVHP-WP

Quality:

  • Carbon Steel with Zinc Chromate Plating (RoHS Compliant)
  • POM Seats & Buna O-Rings Standard on Carbon Steel Valves
  • Only Pressurize Center Port
  • Side Ports Should Not be Pressurized or be Exposed to Back Pressure that is Greater Than the Inlet Pressure
  • Failure to Follow These Guidelines will Result in Internal Leakage Through the Valve
  • For Applications requiring Pressure Applied to Side Ports – Please refer to 3PBVHP Series Valves
  • Full Bore up to 1″ Size, Standard Bore Above 1 ” Size
  • NPT Threads in Accordance with ANSI B. 1.20.1 Specifications
  • SAE Threads in Accordance with SAE J1926-1 Specifications

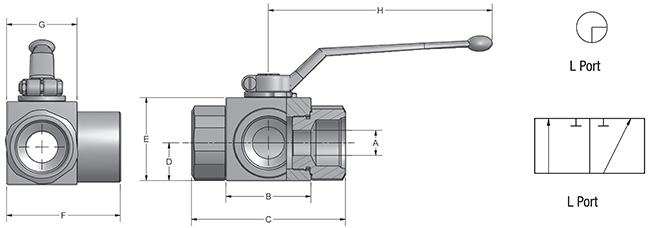

3BVHP-Dimensions



NPT SKU SAE SKU PSI MAX A BORE B C D E F G H
3BVHP-02NPT 5800 0.16 1.70 2.80 0.57 1.38 1.91 1.18 4.33
3BVHP-04NPT 3BVHP-04SAE 5800 0.24 1.70 2.80 0.57 1.38 1.91 1.18 4.33
3BVHP-06NPT 3BVHP-06SAE 5800 0.39 1.75 2.87 0.67 1.57 2.15 1.38 4.33
3BVHP-08NPT 3BVHP-08SAE 5075 0.51 1.91 3.27 0.71 1.69 2.30 1.46 4.33
3BVHP-12NPT 3BVHP-12SAE 5075 0.79 2.46 3.74 0.92 2.17 2.95 1.77 7.09
3BVHP-16NPT 3BVHP-16SAE 5075 0.98 2.62 4.41 1.16 2.56 3.44 2.17 7.09
