Code 61 Split Flange 45° Angle Hose End

100R16, 100R2-AT, 100R17 & 100R12

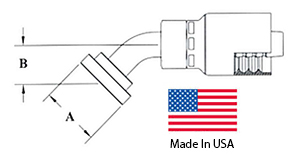

HF11743 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inches) B-Drop (inches)
08 Hose – 08FL45 1/2 1/2 1.19 0.78
08 Hose – 12FL45 3/4 1/2 1.50 0.82
12 Hose – 12FL45 3/4 3/4 1.50 1.00
12 Hose – 16FL45 1 3/4 1.75 1.00
16 Hose – 16FL45 1 1 1.75 1.12
16 Hose – 20FL45 1-1/4 1 2.00 1.12
20 Hose – 20FL45 1-1/4 1-1/4 2.00 1.15
20 Hose – 24FL45 1-1/2 1-1/4 2.38 1.50
24 Hose – 24FL45 1-1/2 1-1/2 2.38 1.41
32 Hose – 32FL45 2 2 2.81 2.08
