Female BSPP 60° Cone Swivel 45° Hose End

100R16, 100R2-AT & 100R17

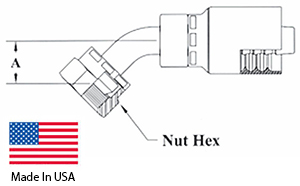

HF1B143 Dimensions

HnF Part Number BSPP Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FBSPX45 1/4 G1/4-19 1/4 0.91 3/4
06 Hose – 06FBSPX45 3/8 G3/8-19 3/8 0.90 7/8
08 Hose – 08FBSXP45 1/2 G1/2-14 1/2 0.87 1
12 Hose – 12FBSPX45 3/4 G3/4-14 3/4 1.31 1-1/4
