Female Komatsu 30° Seat Swivel Hose End

100R16, 100R2-AT, 100R17 & 100R12

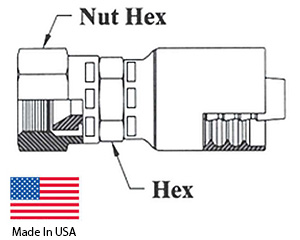

HF1MU43 Dimensions

HnF Part Number Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 14FKX M14x1.5 1/4 5/8 3/4
06 Hose – 18FKX M18x1.5 3/8 11/16 7/8
08 Hose – 22FKX M22x1.5 1/2 7/8 1
10 Hose – 24FKX M24x1.5 5/8 1 1-1/4
12 Hose – 30FKX M30x1.5 3/4 1-1/8 1-3/8
16 Hose – 33FKX M33x1.5 1 1-3/8 1-1/2
