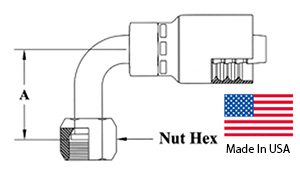

Female O-Ring Face Seal Swivel 90° Hose End
100R16, 100R2-AT, 100R17 & 100R12
| HnF Part Number | Tube Size (inch) | Thread Size | Hose ID (inch) | A-Drop (inch) | Hex Nut (inch) |
| 04 Hose – 04FFSX90 | 1/4 | 9/16-18 | 1/4 | 0.80 | 11/16 |
| 04 Hose – 06FFSX90 | 3/8 | 11/16-16 | 1/4 | 0.90 | 13/16 |
| 06 Hose – 04FFSX90 | 1/4 | 9/16-18 | 3/8 | 0.78 | 11/16 |
| 06 Hose – 06FFSX90 | 3/8 | 11/16-16 | 3/8 | 0.90 | 13/16 |
| 06 Hose – 08FFSX90 | 1/2 | 13/16-16 | 3/8 | 1.15 | 15/16 |
| 08 Hose – 06FFSX90 | 3/8 | 11/16-16 | 1/2 | 0.90 | 13/16 |
| 08 Hose – 08FFSX90 | 1/2 | 13/16-16 | 1/2 | 1.15 | 15/16 |
| 08 Hose – 10FFSX90 | 5/8 | 1-14 | 1/2 | 1.27 | 1-1/8 |
| 10 Hose – 10FFSX90 | 5/8 | 1-14 | 5/8 | 1.27 | 1-1/8 |
| 10 Hose – 12FFSX90 | 3/4 | 1 3/16-12 | 5/8 | 1.88 | 1-3/8 |
| 12 Hose – 10FFSX90 | 5/8 | 1-14 | 3/4 | 1.27 | 1-1/8 |
| 12 Hose – 12FFSX90 | 3/4 | 1 3/16-12 | 3/4 | 1.88 | 1-3/8 |
| 12 Hose – 16FFSX90 | 1 | 1 7/16-12 | 3/4 | 2.20 | 1-5/8 |
| 16 Hose – 16FFSX90 | 1 | 1 7/16-12 | 1 | 2.20 | 1-5/8 |
| 20 Hose – 20FFSX90 | 1-1/4 | 1 11/16-12 | 1-1/4 | 2.51 | 1-7/8 |
