Female O-Ring Face Seal Swivel Hose End

100R16, 100R2-AT, 100R17 & 100R12

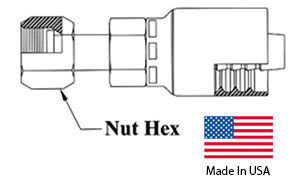

HF1JS43 Dimensions

HnF Part Number Tube OD (inch) Thread Size Hose ID (inch) Hex Nut (inch)
04 Hose 04FFSX 1/4 9/16-18 1/4 11/16
04 Hose – 06FFSX 3/8 11/16-16 1/4 13/16
04 Hose – 08FFSX 1/2 13/16-16 1/4 15/16
06 Hose – 04FFSX 1/4 9/16-18 3/8 11/16
06 Hose – 06FFSX 3/8 11/16-16 3/8 13/16
06 Hose – 08FFSX 1/2 13/16-16 3/8 15/16
08 Hose – 06FFSX 3/8 11/16-16 1/2 13/16
08 Hose – 08FFSX 1/2 13/16-16 1/2 15/16
08 Hose – 10FFSX 5/8 1-14 1/2 1-1/8
08 Hose – 12FFSX 3/4 1 3/16-12 1/2 1-3/8
10 Hose – 10FFSX 5/8 1-14 5/8 1-1/8
10 Hose – 12FFSX 3/4 1 3/16-12 5/8 1-3/8
12 Hose – 10FFSX 5/8 1-14 3/4 1-1/8
12 Hose – 12FFSX 3/4 1 3/16-12 3/4 1-3/8
12 Hose – 16FFSX 1 1 7/16-12 3/4 1-5/8
16 Hose – 16FFSX 1 1 7/16-12 1 1-5/8
20 Hose – 20FFSX 1-1/4 1 11/16-12 1-1/4 1-7/8
24 Hose – 24FFSX 1-1/2 2-12 1-1/2 2-1/4
