Female Pipe Swivel Hose End

100R14

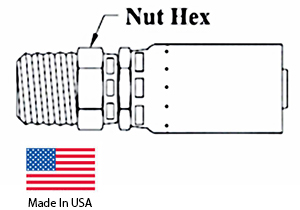

E Series Male Pipe Swivel Hose End

HnF Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 04MPX 1/4 1/4-18 1/4 9/16 5/8
05 Hose – 04MPX 1/4 1/4-18 5/16 11/16 3/4
06 Hose – 06MPX 3/8 3/8-18 3/8 11/16 3/4
08 Hose – 08MPX 1/2 1/2-14 1/2 3/4 7/8
Swivel for Installation Purpose Only.  Leakage May Occur at Low Pressure.
