Female Pipe Swivel Hose End

100R16, 100R2-AT & 100R17

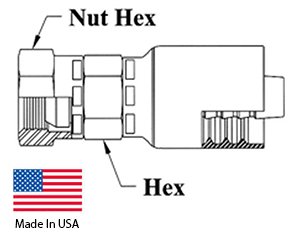

HF10743 Dimensions

HnF Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 04FPX 1/4 1/4-18 1/4 9/16 11/16
06 Hose – 06FPX 3/8 3/8-18 3/8 11/16 7/8
06 Hose – 08FPX 1/2 1/2-14 3/8 3/4 1
08 Hose – 08FPX 1/2 1/2-14 1/2 7/8 1
12 Hose – 12FPX 3/4 3/4-14 3/4 1-1/8 1-1/4
16 Hose – 16FPX 1 1-11 1/2 1 1-3/8 1-1/2
20 Hose – 20FPX 1-1/4 1 1/4-11 1/2 1-1/4 1-11/16 1-7/8
