Solid Female Pipe

100R16, 100R2-AT & 100R17

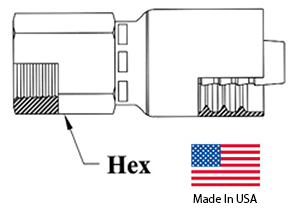

HF10243 Dimensions

HnF Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 02FP 1/8 1/8-27 1/4 5/8
04 Hose – 04FP 1/4 1/4-18 1/4 3/4
06 Hose – 04FP 1/4 1/4-18 3/8 3/4
06 Hose – 06FP 3/8 3/8-18 3/8 7/8
06 Hose – 08FP 1/2 1/2-14 3/8 1
08 Hose – 08FP 1/2 1/2-14 1/2 1
12 Hose – 12FP 3/4 3/4-14 3/4 1-1/4
