CAT Split Flange Hose End

100R13, 100R15 & 4SH

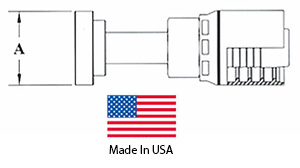

HF1XA Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch)
12 Hose – 12FLCAT 3/4 3/4 1.62
16 Hose – 16FLCAT 1 1 1.88
20 Hose – 20FLCAT 1-1/4 1-1/4 2.12
24 Hose – 24FLCAT 1-1/2 1-1/2 2.50
32 Hose – 32FLCAT 2 2 3.12
