Code 62 Split Flange 90° Angle Hose End

100R13, 100R15 & 4SH

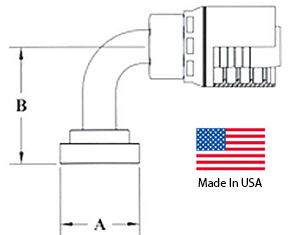

HF16N Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch) B-Drop (inch)
12 Hose – 12FLH45 3/4 3/4 1.62 2.50
12 Hose – 16FLH45 1 3/4 1.88 2.50
16 Hose – 16FLH45 1 1 1.88 2.75
16 Hose – 20FLH45 1-1/4 1 2.12 2.88
20 Hose – 20FLH45 1-1/4 1-1/4 2.12 3.25
24 Hose – 24FLH45 1-1/2 1-1/2 2.50 3.75
32 Hose – 32FLH45 2 2 3.12 5.38
