Female JIC Swivel 45º Angle Hose End

100R14

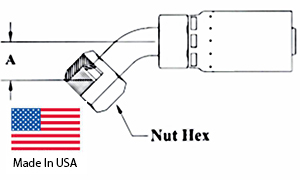

E Series Female JIC 45 Degree Angle Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FJX45 1/4 7/16-20 1/4 0.47 9/16
05 Hose – 06FJX45 3/8 9/16-18 5/16 0.59 11/16
06 Hose – 06FJX45 3/8 9/16-18 3/8 0.59 11/16
08 Hose – 08FJX45 1/2 3/4-16 1/2 0.71 7/8
08 Hose – 10FJX45 5/8 7/8-14 1/2 0.84 1
12 Hose – 12FJX45 3/4 1 1/16-12 3/4 1.12 1-1/4
16 Hose – 16FJX45 1 1 5/16-12 1 1.15 1-1/2
