Female JIC Swivel 90° Long Drop Hose End

100R14

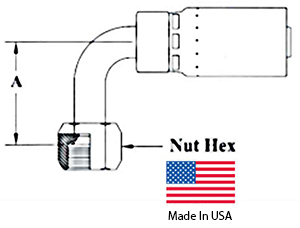

E Series Female JIC 90 Degree Long Drop Angle Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FJX90L 1/4 7/16-20 1/4 1.80 9/16
06 Hose – 06FJX90L 3/8 9/16-18 3/8 2.18 11/16
08 Hose – 08FJX90L 1/2 3/4-16 1/2 2.50 7/8
12 Hose – 12FJX90L 3/4 1 1/16-12 3/4 3.73 1-1/4
16 Hose – 16FJX90L 1 1 5/16-12 1 4.50 1-1/2
