Male Inverted Flare Swivel Hose End

100R5

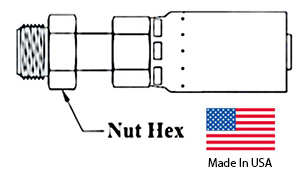

E Series Male Inverted Flare Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04MINVX 1/4 7/16-24 3/16 1.23 7/16
05 Hose – 05MINVX 5/16 1/2-20 1/4 1.38 1/2
06 Hose – 06MINVX 3/8 5/8-18 5/16 1.63 5/8
08 Hose – 08MINVX 1/2 3/4-18 13/32 2.20 3/4
