Male Pipe Hose End

100R5

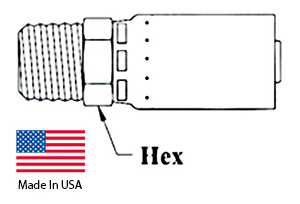

E Series Male Pipe Hose End

HnF Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 02MP 1/8 1/8-27 3/16 9/16
04 Hose – 04MP 1/4 1/4-18 3/16 9/16
05 Hose – 04MP 1/4 1/4-18 1/4 9/16
06 Hose – 04MP 1/4 1/4-18 5/16 11/16
06 Hose – 06MP 3/8 3/8-18 5/16 11/16
08 Hose – 06MP 3/8 3/8-18 13/32 3/4
08 Hose – 08MP 1/2 1/2-14 13/32 7/8
10 Hose – 08MP 1/2 1/2-14 1/2 7/8
12 Hose – 12MP 3/4 3/4-14 5/8 1-1/16
16 Hose – 16MP 1 1-11 1/2 7/8 1-3/8
20 Hose – 20MP 1-1/4 1 1/4-11 1/2 1-1/8 1-11/16
24 Hose – 24MP 1-1/2 1 1/2-11 1/2 1-3/8 2
32 Hose – 32MP 2 2-11 1/2 1-13/16 2-1/2
