Female JIC Swivel 45º Angle Hose End

100R7 & 100R8

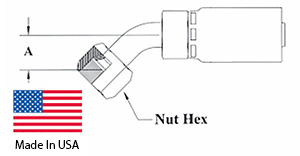

R7-R8-FJX45 Specifications

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 05FJX45 5/16 1/2-20 1/4 0.53 5/8
06 Hose – 06FJX45 3/8 9/16-18 3/8 0.59 11/16
06 Hose – 08FJX45 1/2 3/4-16 3/8 0.71 7/8
08 Hose – 08FJX45 1/2 3/4-16 1/2 0.71 7/8
08 Hose – 10FJX45 5/8 7/8-14 1/2 0.84 1
