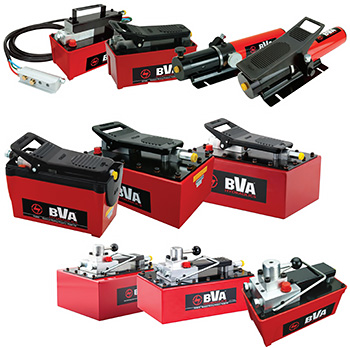

BVA Single & Double Acting
Air Actuated Pump
Features:
- Metal Reservoirs Resist Cracking
- US Patent No. 5,946,912 a Built in Bypass Device Protects The Hydraulic System From Over Pumping Damage
- A Compact Yet Powerful Air Turbo Motor US Patent No. 5,341,723
- Suggested Air Inlet Range: 110-175 psi / 7.6-12.1 Bar
- Maximum Working Pressure: 10,00 psi / 700 Bar
| SINGLE ACTING | ||||||

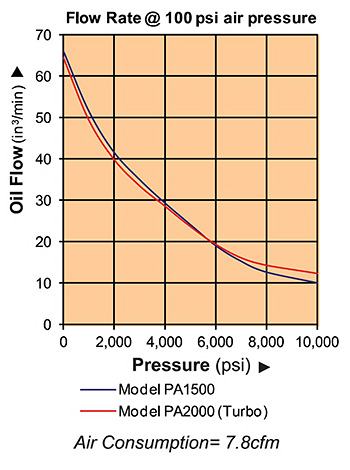

| SKU | Usable Oil Capacity | Oil Outlet Port | Output Flow Rate NO Load (in³/min) | Output Load Flow Load (in³/min) | Input Pressure Required (psi) | Air Consumption (cfm) |
| PA600 | 36.6 | 3/8-18 NPTF | 61 | 9 | 110-175 | 7.8 |
| PA600H | 36.6 | 3/8-18 NPTF | 61 | 9 | 110-175 | 7.8 |
| PA1500 | 91.5 | 3/8-18 NPTF | 66 | 11 | 110-175 | 7.8 |
| PA1500A♦ | 91.5 | 3/8-18 NPTF | 66 | 11 | 110-175 | 7.8 |
| PA1500L ♦♦ | 91.5 | 3/8-18 NPTF | 61 | 10 | 110-175 | 7.8 |
| PA2000 | 122.1 | 3/8-18 NPTF | 65 | 12 | 110-175 | 7.8 |
| PA3801 | 231.9 | 3/8-18 NPTF | 65 | 11 | 110-175 | 7.8 |
| PA3801L♦ | 231.9 | 3/8-18 NPTF | 61 | 10 | 110-175 | 7.8 |
| PA7550 | 460.6 | 3/8-18 NPTF | 65 | 11 | 110-175 | 7.8 |
| DOUBLE ACTING | ||||||
| PA1500M | 91.5 | 3/8-18 NPTF | 66 | 11 | 110-175 | 7.8 |
| PA3801M | 231.9 | 3/8-18 NPTF | 65 | 11 | 110-175 | 7.8 |
| PA7550M | 460.6 | 3/8-18 NPTF | 65 | 11 | 110-175 | 7.8 |
♦ PA1000A is Equipped with an External Pressure Adjustment (1,000-10,000 psi)
♦ These Pumps are Equipped with a Hand Held Air Powered Pendant
| SINGLE ACTING | |||||||

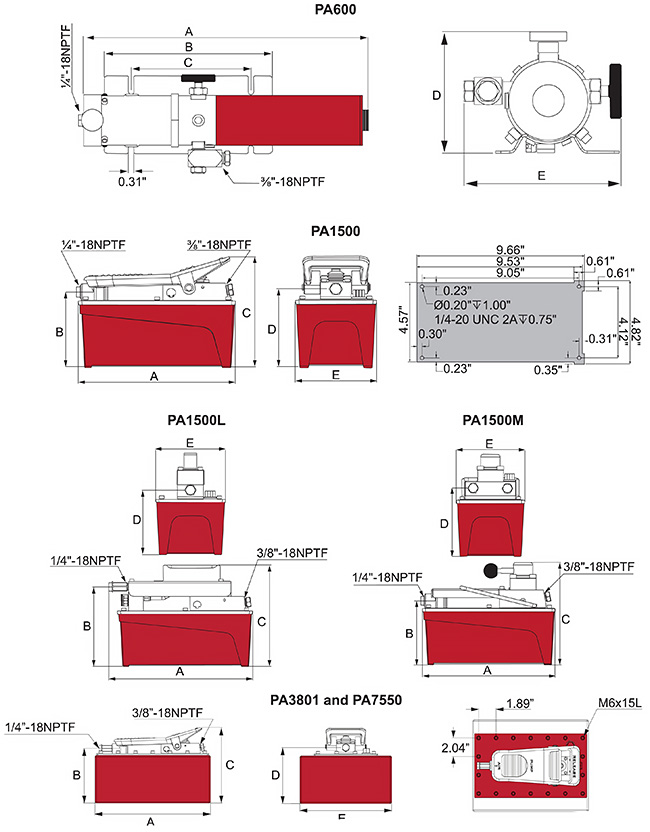

| SKU | Base Mounting Holes | A (in) | B (in) | C (in) | D (in) | E (in) | Weight w/Oil (lbs) |
| PA600 | Yes | 16.77 | 9.84 | 7.01 | 6.18 | 5.59 | 14.1 |
| PA600H | Yes | 16.77 | 9.84 | 7.01 | 4.49 | 5.75 | 12.5 |
| PA1500 | Yes | 10.35 | 5.00 | 7.28 | 5.16 | 5.35 | 18.1 |
| PA1500A♦ | Yes | 10.35 | 5.00 | 7.28 | 5.16 | 5.35 | 18.1 |
| PA1500L♦♦ | Yes | 10.96 | 6.30 | 8.03 | 5.12 | 5.35 | 19.4 |
| PA2000 | Yes | 12.64 | 6.42 | 8.15 | 5.20 | 7.36 | 20.1 |
| PA3801 | No | 12.64 | 5.08 | 7.36 | 5.24 | 7.36 | 27.1 |
| PA3801L ♦♦ | No | 12.64 | 6.42 | 8.15 | 5.20 | 7.36 | 30.4 |
| PA7550 | No | 12.64 | 5.00 | 8.31 | 6.14 | 8.43 | 36.0 |
| DOUBLE ACTING | |||||||
| PA1500M | Yes | 10.51 | 5.00 | 7.99 | 5.35 | 5.35 | 19.1 |
| PA3801M | No | 12.64 | 5.04 | 8.03 | 5.31 | 7.36 | 24.0 |
| PA7550M | No | 12.64 | 5.98 | 9.02 | 6.34 | 10.04 | 40.0 |
♦ PA1000A is Equipped with an External Pressure Adjustment (1,000-10,000 psi)
♦ These Pumps are Equipped with a Hand Held Air Powered Pendant
