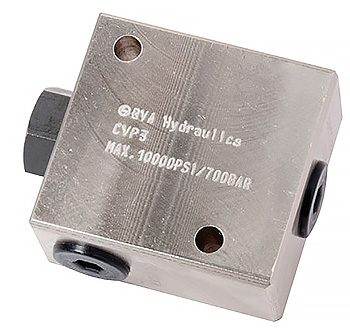

BVA CVP3 Pilot Operated Check Valve



CVP3-350

Features and Diagram:

  • CVP3 has 3/8″ – 18 NPTF Ports
  • 10,000 psi Rated
  • Mounted in Line to a Cylinder Which Will Hold Pressure in the Event of Pressure Loss in The System
  • Most Often Used on Double-Acting Cylinders With Pilot Port Receiving Pressure From a Tee Off of The Cylinder Retracting Line
  • Pilot Pressure Ratio 15% OR 6.5:1

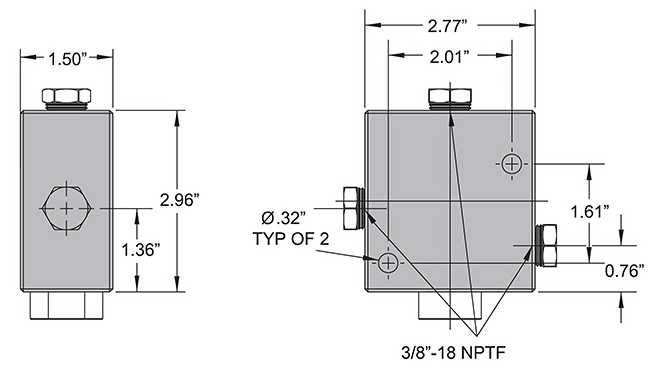

CVP-Dimensions
