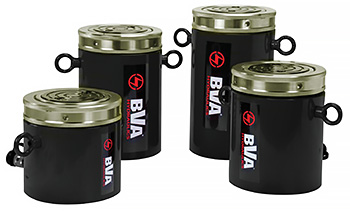

BVA HULN Series Lock Nut
Aluminum Cylinders
Features:
- Single Acting Cylinder With Mechanical Safety Lock Nut
- Designed to Support Loads without Hydraulic Pressure
- Overflow Port Prevents Cylinders from Over Travel
- Load Return
- Lightweight Aluminum Cylinder Body
- Steel Saddle
- Hard Anodized Rod to Resist Corrosion and Rust
- Maximum Working Pressure: 10,000 psi / 700 Bar
| SKU | Size (ton) | Stroke (in) | Cylinder Effective Area (in2) | Oil Capacity (in3) | Weight (lbs) |
| HULN3002 | 30 | 2.00 | 6.50 | 13.00 | 15.0 |
| HULN3004 | 30 | 4.00 | 6.50 | 26.00 | 18.0 |
| HULN3006 | 30 | 6.00 | 6.50 | 39.00 | 21.0 |
| HULN3008 | 30 | 8.00 | 6.50 | 52.00 | 24.0 |
| HULN3010 | 30 | 10.00 | 6.50 | 65.00 | 27.0 |
| HULN5002 | 50 | 2.00 | 11.04 | 21.65 | 21.0 |
| HULN5004 | 50 | 4.00 | 11.04 | 43.30 | 26.0 |
| HULN5006 | 50 | 6.00 | 11.04 | 64.92 | 29.0 |
| HULN5008 | 50 | 8.00 | 11.04 | 86.56 | 34.0 |
| HULN5010 | 50 | 10.00 | 11.04 | 108.20 | 38.0 |
| HULN10002 | 100 | 2.00 | 20.68 | 40.51 | 43.0 |
| HULN10004 | 100 | 4.00 | 20.68 | 81.00 | 51.0 |
| HULN10006 | 100 | 6.00 | 20.68 | 121.50 | 60.0 |
| HULN10008 | 100 | 8.00 | 20.68 | 162.00 | 69.0 |
| HULN10010 | 100 | 10.00 | 20.68 | 202.50 | 77.0 |
| HULN15002 | 150 | 2.00 | 30.68 | 60.60 | 66.0 |
| HULN15004 | 150 | 4.00 | 30.68 | 121.20 | 79.0 |
| HULN15006 | 150 | 6.00 | 30.68 | 181.80 | 92.0 |
| HULN15008 | 150 | 8.00 | 30.68 | 242.40 | 106.0 |
| HULN15010 | 150 | 10.00 | 30.68 | 303.00 | 123.0 |

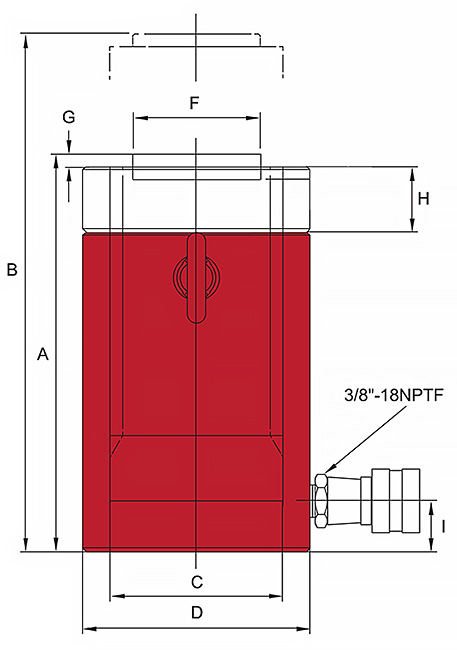

| SKU | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | H (in) | I (in) |
| HULN3002 | 7.75 | 9.75 | 2.88 | 4.50 | 2.00 | 0.10 | 1.25 | 1.50 |
| HULN3004 | 9.75 | 13.75 | 2.88 | 4.50 | 2.00 | 0.10 | 1.25 | 1.50 |
| HULN3006 | 11.75 | 17.75 | 2.88 | 4.50 | 2.00 | 0.10 | 1.25 | 1.50 |
| HULN3008 | 13.75 | 21.75 | 2.88 | 4.50 | 2.00 | 0.10 | 1.25 | 1.50 |
| HULN3010 | 15.75 | 25.75 | 2.88 | 4.50 | 2.00 | 0.10 | 1.25 | 1.50 |
| HULN5002 | 8.13 | 10.13 | 3.75 | 5.50 | 2.50 | 0.10 | 1.50 | 1.50 |
| HULN5004 | 10.13 | 14.13 | 3.75 | 5.50 | 2.50 | 0.10 | 1.50 | 1.50 |
| HULN5006 | 12.13 | 18.13 | 3.75 | 5.50 | 2.50 | 0.10 | 1.50 | 1.50 |
| HULN5008 | 14.13 | 22.13 | 3.75 | 5.50 | 2.50 | 0.10 | 1.50 | 1.50 |
| HULN5010 | 16.13 | 26.13 | 3.75 | 5.50 | 2.50 | 0.10 | 1.50 | 1.50 |
| HULN10002 | 8.38 | 10.38 | 5.13 | 8.00 | 3.50 | 0.10 | 1.75 | 1.50 |
| HULN10004 | 10.38 | 14.38 | 5.13 | 8.00 | 3.50 | 0.10 | 1.75 | 1.50 |
| HULN10006 | 12.38 | 18.38 | 5.13 | 8.00 | 3.50 | 0.10 | 1.75 | 1.50 |
| HULN10008 | 14.38 | 22.38 | 5.13 | 8.00 | 3.50 | 0.10 | 1.75 | 1.50 |
| HULN10010 | 16.38 | 26.38 | 5.13 | 8.00 | 3.50 | 0.10 | 1.75 | 1.50 |
| HULN15002 | 8.38 | 10.38 | 6.25 | 10.00 | 4.50 | 0.10 | 1.75 | 1.50 |
| HULN15004 | 10.38 | 14.38 | 6.25 | 10.00 | 4.50 | 0.10 | 1.75 | 1.50 |
| HULN15006 | 12.38 | 18.38 | 6.25 | 10.00 | 4.50 | 0.10 | 1.75 | 1.50 |
| HULN15008 | 14.38 | 22.38 | 6.25 | 10.00 | 4.50 | 0.10 | 1.75 | 1.50 |
| HULN15010 | 16.38 | 26.38 | 6.25 | 10.00 | 4.50 | 0.10 | 1.75 | 1.50 |
