BVA PG/PD Series Gas & Diesel Pumps

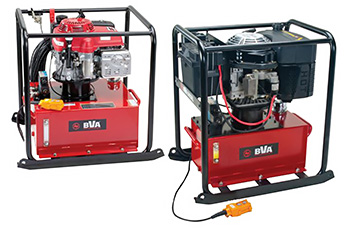

Gas & Diesel Group-WP

Gas Engine Pump Features:

  • Provide 10,000 psi at Remote Locations
  • Industrial Grade 5.5 or 10.2 hp Honda Gas Engine
  • Ideal for Applications at remote Locations
  • Two Speed Pump Designed for Rapid Cylinder Advance
  • Gas Pump Features a Sturdy Protective Roll Cage for Use in the Toughest Environments
  • Manual Control Valve for Use With Single or Double Acting Cylinders or Tools
  • Optional Electric Start

Diesel Engine Pump Features:

  • Will Provide 10,000 psi at Remote Locations
  • Industrial Grade 7.3 hp HATZ Diesel Engine
  • Locking Solenoid Control Valve for Use With Single or Double Acting Cylinders or Tools
  • Two Speed Pump Designed for Rapid Cylinder Advance
  • Pump Features a Sturdy Protective Roll Cage for Use in the Toughest Environments
  • Ideal for Application When Diesel Fuel in Remote Environments is Required
  • Comes Standard with Electric Start



Motor HP/Type Usable Oil Capacity 5 Gallons SKU Usable Oil Capacity 10 Gallons SKU Usable Oil Capacity 15 Gallons SKU
Gas – 5.5 Hp Honda PG70M3N05
Gas – 10.2 Hp Honda PG90S3L05 PG90S3L10 PG90S3L15
Diesel – 7.3 Hp HATZ PD80S3L05 PD80S3L10 PD80S3L15
Gas – 5.5 Hp Honda PG70M4N05
Gas – 10.2 Hp Honda PG90S4L05 PG90S4L10 PG90S4L15
Diesel – 7.3 Hp HATZ PD80S4L05 PD80S4L10 PD80S4L15

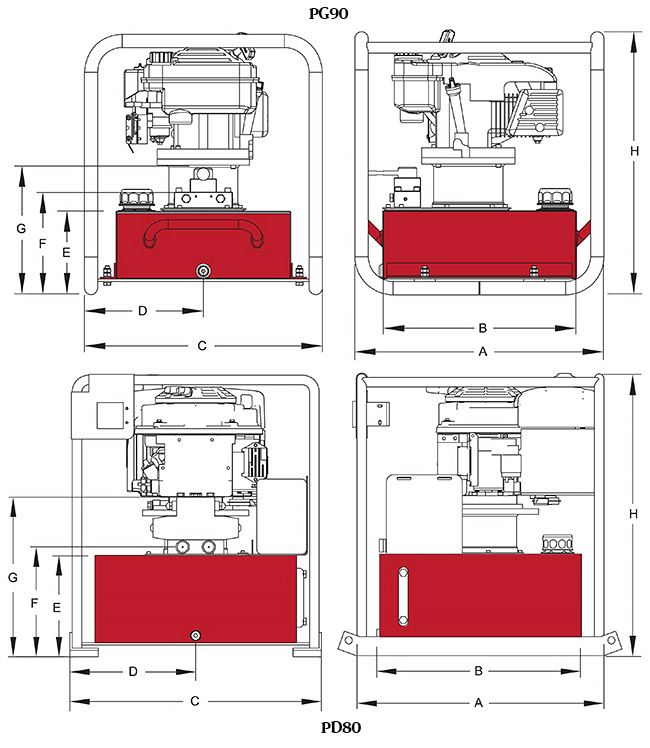

Gas-Diesel Dimensions



SKU – Gas Pumps A (in) B (in) C (in) D (in) E (in) F (in) G (in) H (in) Weight** (lbs)
PG70xx05 26.57 21.50 20.94 10.47 11.50 12.43 15.47 24.70 162
PG90xxx10 28.25 23.37 27.00 13.50 12.00 12.93 17.38 24.70 303
PG90xxx15 28.25 23.37 27.00 13.50 12.00 12.93 17.38 24.70 372
SKU – Diesel Pumps
PD80xxx05 26.57 21.50 20.94 10.47 11.50 12.43 15.47 32.60 255
PD80xxx10 28.25 23.37 27.00 13.50 12.00 12.93 17.38 32.60 329
PD80xxx15 28.25 26.00 27.00 13.50 12.00 12.93 17.38 32.60 403

 **Weight Includes Oil

“xxx” in Model Number Refers to The Type of Valve You May Use on the Gas/Diesel Engine.  NOT all Options are Available in All Configurations.





Spring-Return

Spring Return

 Use with Spring Return Cylinder

Valve Type Valve Function Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi)
Manual 3W/3P Advance/ Hold Return 427 700 100 10,000
Solenoid 3W/3P Advance/ Hold Return 600 700 200 10,000
Solenoid 3W/3P Advance/ Hold Return 600 700 200 10,000









Double-Acting

Double Acting

 Use With Double Acting Cylinder

Valve Type Valve Function Flow Rate 1st Stage (in³/min) Flow Rate 1st Stage (psi) Flow Rate 2nd Stage (in³/min) Flow Rate 2nd Stage (psi)
Manual 4w/3P Advance/Hold Return 427 700 100 10,000
Solenoid 4w/3P Advance/Hold Return 600 700 200 10,000
Solenoid 4w/3P Advance/Hold Return 600 700 200 10,000

Safety Sizing Warning
