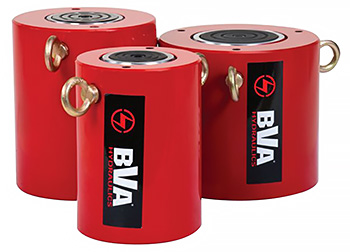

BVA HG Series High Tonnage
Single Acting Cylinder
Features:
- Capacity: 100- 1,500 Tons
- Stroke: 1.97 – 11.81 Inches
- Maximum Operating Pressure: 10,000 psi
- Minimum – Maximum Height: 7.17 – 43.86 Inches
- Cylinders are Burnished Rolled Creating a Smoother Surface Than Honing
- Rod Wiper Seals Out Dirt and Contamination
- Base Mounting Holes on All Models
- High Strength Steel Construction From Gun Drilled Solid Bar Providing Extra Combine Strength for High Tonnage Applications
- High Flow 3/8″ NPTF Coupler
- Polyurethane Cup Seal Provides Optimum Performance
- Industrial Hard Chrome Plated Rod Helps Prevent Rust and Corrosion
- Maximum Working Pressure: 10,000 psi/700 bar
- Custom Sizes are Available Upon Request
- Load Return
| SKU | Size | Stroke (in) | Cylinder Capacity (ton) | Cylinder Effective Area (in²) | Oil Capacity (in³) | Weight (lbs) |
| HG10002 | 100 | 1.97 | 102.86 | 20.57 | 40.50 | 61.0 |
| HG10004 | 100 | 3.94 | 102.86 | 20.57 | 81.00 | 74.0 |
| HG10006 | 100 | 5.91 | 102.86 | 20.57 | 121.50 | 87.0 |
| HG10008 | 100 | 7.87 | 102.86 | 20.57 | 161.99 | 100.0 |
| HG10010 | 100 | 9.84 | 102.86 | 20.57 | 202.49 | 114.0 |
| HG10012 | 100 | 11.81 | 102.86 | 20.57 | 242.99 | 127.0 |
| HG15002 | 150 | 1.97 | 152.11 | 30.43 | 59.89 | 102.0 |
| HG15004 | 150 | 3.94 | 152.11 | 30.43 | 119.78 | 122.0 |
| HG15006 | 150 | 5.91 | 152.11 | 30.43 | 181.75 | 142.0 |
| HG15008 | 150 | 7.87 | 152.11 | 30.43 | 239.57 | 162.0 |
| HG15010 | 150 | 9.84 | 152.11 | 30.43 | 299.46 | 181.0 |
| HG15012 | 150 | 11.81 | 152.11 | 30.43 | 359.35 | 202.0 |

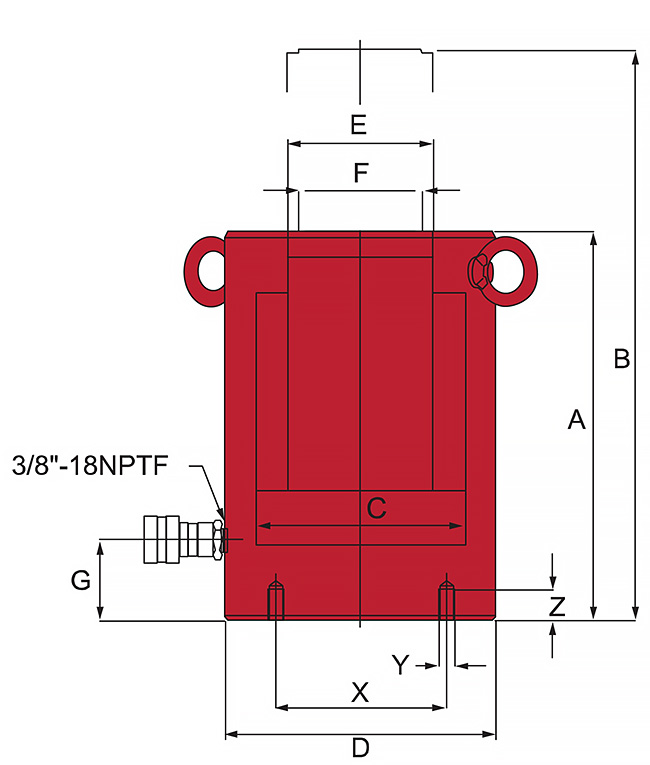

| SKU | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | X (in) | Thread Size (mm) | Thread Depth (in) |
| HG10002 | 7.17 | 9.14 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG10004 | 9.13 | 13.07 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG10006 | 11.10 | 17.01 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG10008 | 13.07 | 20.94 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG10010 | 15.04 | 24.88 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG10012 | 17.01 | 28.82 | 5.12 | 3.50 | 3.74 | 2.95 | 2.13 | 3.74 | M12 | 0.87 |
| HG15002 | 7.72 | 9.69 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
| HG15004 | 9.69 | 13.62 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
| HG15006 | 11.65 | 17.56 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
| HG15008 | 13.62 | 21.50 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
| HG15010 | 15.59 | 25.43 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
| HG15012 | 17.56 | 29.37 | 6.22 | 8.07 | 4.33 | 3.70 | 2.40 | 5.12 | M12 | 0.87 |
