C6400 Series
Description: Compression x SAE Male BOSS Adapter
SAE: 080120
Similar Products
Parker – F5BU
WeatherHead – 7315

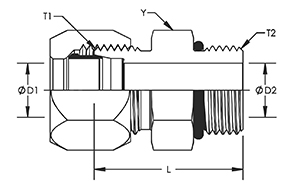

| HnF SKU | Y Hex | T1 | D1 | T2 | D2 | L |
| C6400-03-03 | 0.500 | 3/8-24 | 0.125 | 3/8-24 | 0.125 | 1.04 |
| C6400-04-04 | 0.563 | 7/16-20 | 0.203 | 7/16-20 | 0.203 | 1.13 |
| C6400-04-05 | 0.625 | 7/16-20 | 0.203 | 1/2-20 | 0.234 | 1.13 |
| C6400-04-06 | 0.688 | 7/16-20 | 0.203 | 9/16-18 | 0.281 | 1.19 |
| C6400-05-05 | 0.625 | 1/2-20 | 0.234 | 1/2-20 | 0.234 | 1.13 |
| C6400-06-06 | 0.688 | 9/16-18 | 0.281 | 9/16-18 | 0.281 | 1.21 |
| C6400-06-08 | 0.875 | 9/16-18 | 0.281 | 3/4-16 | 0.422 | 1.29 |
| C6400-08-06 | 0.813 | 3/4-16 | 0.422 | 9/16-18 | 0.281 | 1.34 |
| C6400-08-08 | 0.875 | 3/4-16 | 0.422 | 3/4-16 | 0.422 | 1.38 |
| C6400-08-10 | 1.000 | 3/4-16 | 0.422 | 7/8-14 | 0.500 | 1.51 |
| C6400-08-12 | 1.250 | 3/4-16 | 0.422 | 1-1/16-12 | 0.656 | 1.67 |
| C6400-10-08 | 1.000 | 7/8-14 | 0.500 | 3/4-16 | 0.422 | 1.51 |
| C6400-10-10 | 1.000 | 7/8-14 | 0.500 | 7/8-14 | 0.500 | 1.57 |
| C6400-12-06 | 1.125 | 1-1/16-12 | 0.656 | 9/16-18 | 0.281 | 1.68 |
| C6400-12-12 | 1.250 | 1-1/16-12 | 0.656 | 1-1/16-12 | 0.656 | 1.79 |
| C5400-12-16 | 1.500 | 1-1/16-12 | 0.656 | 1-5/16-12 | 0.875 | 1.82 |
| C6400-14-14 | 1.375 | 1-3/16-12 | 0.719 | 1-3/16-12 | 0.719 | 1.79 |
| C6400-16-12 | 1.375 | 1-3/16-12 | 0.719 | 1-3/16-12 | 0.719 | 1.79 |
| C6400-16-16 | 1.500 | 1-5/16-12 | 0.875 | 1-5/16-12 | 0.875 | 1.82 |
| C6400-20-20 | 1.875 | 1-5/8-12 | 1.094 | 1-5/8-12 | 1.094 | 1.90 |
| C6400-24-24 | 2.123 | 1-7/8-12 | 1.344 | 1-7/8-12 | 1.344 | 1.97 |
| C6400-32-32 | 2.150 | 2-1/2-12 | 1.813 | 2-1/2-12 | 1.813 | 2.13 |
