Cush-A-Grip Features & Sizing
- Ten Sizes of Tube
- Five Sizes of Pipe
- Diameters From 0.25″ to 1.31″
- Fewer Parts Needed on the Job
- Simplifies Take-offs and Requirements on Projects Using Both Tube and Pipe Sizes
- Industry Standard Hardware
- Easy Installation
- Non-Conducting
- Permissible Outdoors
- Temperature Range: -40°F to +380°F
- No Galvanic Reaction
- Will Not Rust
- Works With Screw or Nut Driver
- Resists Vibration
- Use in Place of Steel Clamps With Steel Tube
- Multi-Environmental
- For Use on Copper Tube
- Use in Place of Stainless, Aluminum, PVC, or Hot Dipped Galvanized Clamps
| Part # | O.D. Tube Sizes |
Pipe Sizes |
Metric Sizes |
Diameters (inches) |
||
|---|---|---|---|---|---|---|
| GRIP-10 | 1/4″ | 3/8″ | 1/2″ | 1/4″ | 6mm – 14mm | 0.25 – 0.54 |
| GRIP-20 | 5/8″ | 3/4″ | 7/8″ | 3/8″ – 1/2″ | 15mm – 22mm | 0.62 – 0.87 |
| GRIP-30 | 7/8″ | 1″ | 1-1/8″ | 3/4″ | 22mm – 28mm | 0.87 – 1.12 |
| GRIP-40 | 1″ | 1-1/8″ | 1-1/4″ | 3/4″ – 1″ | 26mm – 32mm | 1.00 – 1.31 |

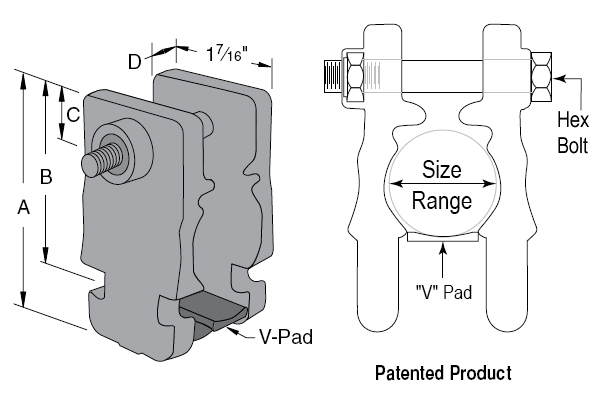

| Part # | Nominal Pipe Size |
Dimensions (inches) | Hex Head Cap Screw & Lock Nut |
|||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| GRIP-10 | 1/4″ | 1-15/16 | 1-3/8 | 3/8 | 3/16 | ¼”-20 x 1½” |
| GRIP-20 | 3/8″ | 2-3/8 | 1-5/8 | 7/16 | 1/4 | ¼”-20 x 2″ |
| GRIP-30 | 1/2″ | 2-9/16 | 1-13/16 | 7/16 | 5/16 | ¼”-20 x 2″ |
| GRIP-40 | 3/4″ | 2-11/16 | 1-15/16 | 7/16 | 5/16 | ¼”-20 x 2″ |
