Dixon Multi-Pack High Pressure Spray Nozzles



1_NZMQC5P-200

Multi-Pack Quick Connect Spray Nozzles

SKU Nozzle Size GPM @800 PSI GPM @1000 PSI GPM @1500 PSI GPM @2000 PSI GPM @2500 PSI GPM @3000 PSI GPM @3500 PSI GPM @4000 PSI GPM @5000 PSI
NZMQC5P-030 3.0 1.34 1.50 1.84 2.12 2.37 2.60 2.81 3.00 3.35
NZMQC5P-035 3.5 1.57 1.75 2.14 2.47 2.77 3.03 3.27 3.50 3.91
NZMQC5P-040 4.0 1.79 2.00 2.45 2.83 3.16 3.46 3.74 4.00 4.47
NZMQC5P-045 4.5 2.01 2.25 2.76 3.18 3.56 3.90 4.21 4.50 5.03
NZMQC5P-050 5.0 2.24 2.50 3.06 3.54 3.95 4.33 4.68 5.00 5.59
NZMQC5P-055 5.5 2.46 2.75 3.37 3.89 4.35 4.76 5.14 5.50 6.15
NZMQC5P-065 6.5 2.91 3.25 3.98 4.60 5.14 5.63 6.08 6.50 7.27
NZMQC5P-080 8.0 3.98 4.00 4.90 5.66 6.32 6.93 7.48 8.00 8.94



NZMMEG5P-200

MEG Multi-Pack Nozzle

SKU Nozzle Size GPM @800 PSI GPM @1000 PSI GPM @1500 PSI GPM @2000 PSI GPM @2500 PSI GPM @3000 PSI GPM @3500 PSI GPM @4000 PSI GPM @5000 PSI
NZMMEG5P-035 3.5 1.57 1.75 2.14 2.47 2.77 3.03 3.27 3.50 3.91
NZMMEG5P-040 4.0 1.79 2.00 2.45 2.83 3.16 3.46 3.74 4.00 4.47
NZMMEG5P-045 4.5 2.01 2.25 2.76 3.18 3.56 3.90 4.21 4.50 5.03
NZMMEG5P-050 5.0 2.24 2.50 3.06 3.54 3.95 4.33 4.68 5.00 5.59
NZMMEG5P-055 5.5 2.46 2.75 3.37 3.89 4.35 4.76 5.14 5.50 6.15

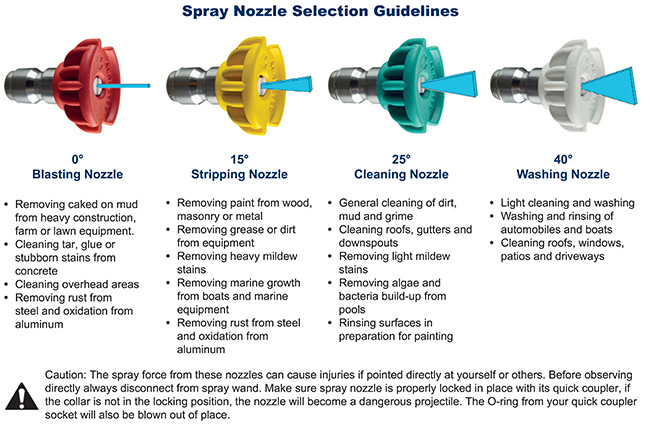

Selection-Guidelines-650

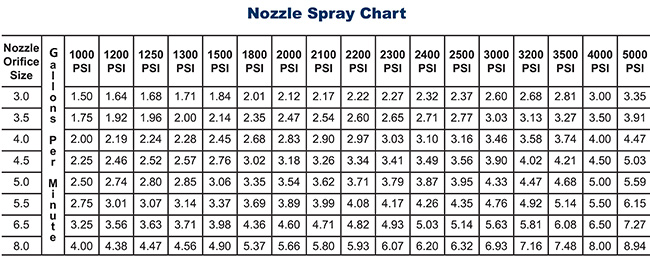

Nozzle-Spray-Chart-650
