Dixon Sanitary Long Weld Ferrule

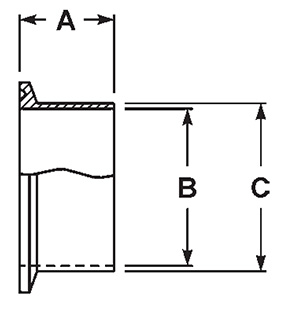

| 304 Stainless SKU | 316L Stainless SKU | Tube OD (inches) | A (in) | B (in) | C (in) |
| L14AM7-G50 | L14AM7-R50 | 1/2 | 1.125 | .370 | .500 |
| L14AM7-G75 | L14AM7-R75 | 3/4 | 1.125 | .620 | .750 |
| L14AM7-G100 | L14AM7-R100 | 1 | 1.125 | .870 | 1.000 |
| L14AM7-G150 | L14AM7-R150 | 1 1/2 | 1.125 | 1.370 | 1.500 |
| L14AM7-G200 | L14AM7-R200 | 2 | 1.125 | 1.870 | 2.000 |
| L14AM7-G250 | L14AM7-R250 | 2 1/2 | 1.125 | 2.370 | 2.500 |
| L14AM7-G300 | L14AM7-R300 | 3 | 1.125 | 2.870 | 3.000 |
| L14AM7-G400 | L14AM7-R400 | 4 | 1.125 | 3.834 | 4.000 |
| L14AM7-G500 | L14AM7-R500 | 5 | 1.125 | 4.782 | 5.000 |
| L14AM7-G600 | L14AM7-R600 | 6 | 1.500 | 5.782 | 6.000 |
| L14AM7-G800 | L14AM7-R800 | 8 | 1.500 | 7.782 | 8.000 |
| L14AM7-G1000 | L14AM7-R1000 | 10 | 1.750 | 9.760 | 10.000 |
| L14AM7-G1200 | L14AM7-R1200 | 12 | 1.750 | 11.760 | 12.000 |
