European Worm Gear Clamps

Features & Sizing

European-Worm-Gear-200



  • 9mm Band & Housing – 430 Stainless Steel
  • 6mm Screw – Zinc Plated Carbon
  • Short Housing Saddle is Weld Free and Keyed Into the Band
  • The Smooth Form Evens the Pressure Around the Hose
  • Pressed Tooth Form and Rounded Raised Band Edges Prevent Damage to the Hose
  • Replaces Shielded/Lined Clamps
  • More Efficient Sealing at Lower Torque

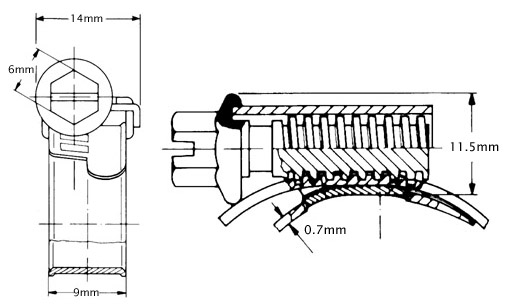

Dimensions Diagram

Part # Clamp Diameter Range “mm” Clamp Diameter Range “in”
08-16ECLAMP 08mm – 16mm 5/16″ – 5/8″
12-20ECLAMP 12mm – 16mm 1/2″ – 3/4″
16-25ECLAMP 16mm – 20mm 5/8″ – 1-1/16″
16-27ECLAMP 16mm – 27mm 5/8 ” – 1″
20-32ECLAMP 20mm – 32mm 3/4″ – 1-1/4″
25-40ECLAMP 25mm – 40mm 1″ – 1-5/8″
30-45ECLAMP 30mm – 45mm 1-3/16″ – 1-3/4″
35-50ECLAMP 32mm – 50mm 1-1/4″ – 2″
40-60ECLAMP 40mm – 60mm 1-5/8″ – 2-3/8″
50-70ECLAMP 50mm – 70mm 2″ – 2-3/4″
