Hosetract Unitract ™ Series

RM -Rear Floor Mount Hose Reel

Unitract-200Features:  Made In USA

  • Unitract™ is a Lighter Duty Reel
  • Maximum Temp is 200°F
  • Mounting Slots 1/2″ Wide x 3/4″ Deep For Maximum 7/16″ Diameter Bolt
  • Inlet 1/2 Inch FPT
  • Weighs 10 Pounds Less Than our Standard Reels
  • Unitized Multi-Functional Hub Arbor
  • 8 Position Guide Arm
  • Minimal Size Envelope Permits Installation Where Space is a Factor
  • Simple Design Incorporates Fewer Parts
  • Single Set Screw to Access Latch Area and Spring Case
  • Heavy Gauge Base with No Welds
  • Low Pressure Reels are Ideally Suited for Plant Maintenance or Many other Industrial Functions where Hose Storage is a Problem
  • Standard Hose for Air, Water, and Oxygen/Acetylene Applications
  • Hose can be dispensed and Retracted Easier Than Coiling by Hand
  • The Unitract™ Series Fits Easily into Height Restricted Areas
  • Not Designed for Truck Mount Applications



SKU Operating Pressure Hose ID (in) Hose Length (feet) Shipping Weight (lbs)
    UTL-300-RM   ♦ 1000 psi 3/8 36
UTL-325-RM 300 psi 3/8 25 38
UTL-330-RM 300 psi 3/8 30 38
UTL-335-RM 300 psi 3/8 35 40
UTL-340-RM 300 psi 3/8 40 41
UTL-350-RM 300 psi 3/8 50 41
    UTL-500-RM   ♦ 1000 psi 1/2 36
UTL-540-RM 300 psi 1/2 40 43
UTL-550-RM 300 psi 1/2 50 47

♦ SKU’s That Do NOT Include Hose

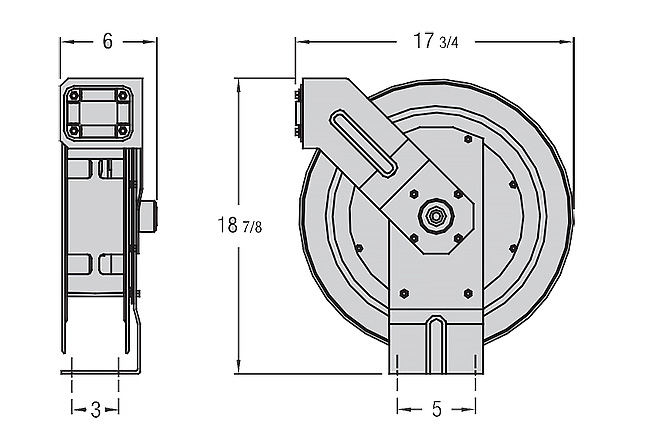

UNITRACT diagram
