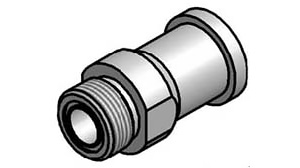

Male Flat Face by Code 61 & 62 Flange

MFF-FL-300

Split Flange Adapter for use with SAE J158 Split Flanges

These Adapters offer Many Cost-Saving Features:

  • One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
  • Zinc Dichromate Finish
  • Compact Design – Simplifies Assembly

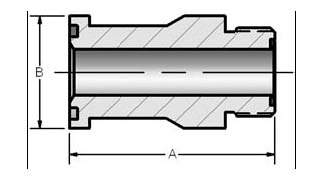

MFF-FLDIAGRAM

Code 61

SKU Tube OD Flange Size A B Thread
304-12-12 3/4 3/4 2.75 1.500 1 3/16-16
304-16-12 1 3/4 2.75 1.500 1 17/16-12
304-12-16 3/4 1 2.80 1.750 1 3/16-12
304-16-16 1 1 2.80 1.750 1 7/16-12
304-20-16 1 1/4 1 2.80 1.750 1 11/16-12
304-16-20 1 1 1/4 2.80 2.000 1 7/16-12
304-20-20 1 1/4 1 1/4 2.80 2.000 1 11/16-12
304-24-20 1 1/2 1 1/4 3.20 2.000 2-12
304-20-24 1 1/4 1 1/2 3.50 2.375 1 11/16-12
304-24-24 1 1/4 1 1/4 3.50 2.375 2-12
304-24-32 1 1/2 2 3.33 2.812 2-12



Code 62

SKU Tube OD Flange Size A B Thread
604-08-08 1/2 1/2 2.58 1.250 13/16-16
604-12-12 3/4 3/4 2.75 1.625 1 3/16-12
604-16-12 1 3/4 2.75 1.625 1 7/16-12
604-12-16 3/4 1 2.80 1.875 1 3/16-12
604-16-16 1 1 2.80 1.875 1 7/16-12
604-20-16 1 1/4 1 3.20 1.875 1 11/16-12
604-16-20 1 1 1/4 3.05 2.125 1 7/16-12
604-20-20 1 1/4 1 1/4 3.05 2.125 1 11/16-12
604-24-20 1 1/2 1 1/4 3.30 2.125 2-12
604-20-24 1 1/4 1 1/2 3.50 2.500 1 11/16-12
604-24-24 1 1/2 1 1/2 3.50 2.500 2-12
604-24-32 1 1/2 2 3.581 3.125 2-12
