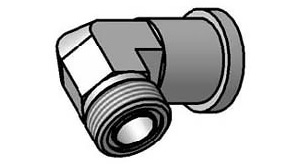

Male Flat Face by Code 61 & Code 62
Flange 90°
Split Flange Adapter for use with SAE J158 Split Flanges
These Adapters offer Many Cost-Saving Features:
- One-Piece Carbon Steel Construction – Simplifies Installation & Eliminates Potential Leak Problems
- Zinc Dichromate Finish
- Compact Design – Simplifies Assembly
Code 61
| SKU | Tube OD | Flange Size | A | B | C | Thread |
| 394-12-12 | 3/4 | 3/4 | 1.500 | 2.13 | 1.66 | 1 3/16-12 |
| 394-16-12 | 1 | 3/4 | 1.500 | 2.13 | 1.66 | 1 7/16-12 |
| 394-12-16 | 3/4 | 1 | 1.750 | 2.37 | 1.81 | 1 3/16-12 |
| 394-16-16 | 1 | 1 | 1.750 | 2.37 | 1.81 | 1 7/16-12 |
| 394-20-16 | 1 1/4 | 1 | 1.750 | 2.37 | 1.81 | 1 11/16-12 |
| 394-16-20 | 1 | 1 1/4 | 2.000 | 2.62 | 2.06 | 1 7/16-12 |
| 394-20-20 | 1 1/4 | 1 1/4 | 2.000 | 2.62 | 2.06 | 1 11/16-12 |
| 394-24-20 | 1 1/2 | 1 1/2 | 2.000 | 2.62 | 2.06 | 2-12 |
| 394-20-24 | 1 1/4 | 1 1/2 | 2.375 | 3.15 | 2.33 | 1 11/16-12 |
| 394-24-24 | 1 1/2 | 1 1/2 | 2.375 | 3.15 | 2.33 | 2-12 |
Code 62
| SKU | Tube OD | Flange Size | A | B | C | Thread |
| 694-12-12 | 3/4 | 3/4 | 1.625 | 2.13 | 1.66 | 1 3/16-12 |
| 694-16-12 | 1 | 3/4 | 1.625 | 2.13 | 1.66 | 1 7/16-12 |
| 694-12-16 | 3/4 | 1 | 1.875 | 2.37 | 1.81 | 1 3/16-12 |
| 694-16-16 | 1 | 1 | 1.875 | 2.37 | 1.81 | 1 7/16-12 |
| 694-20-16 | 1 1/4 | 1 | 1.875 | 2.37 | 1.81 | 1 11/16-12 |
| 694-16-20 | 1 | 1 1/4 | 2.125 | 2.76 | 2.06 | 1 7/16-12 |
| 694-20-20 | 1 1/4 | 1 1/4 | 2.125 | 2.76 | 2.06 | 1 11/16-12 |
| 694-24-20 | 1 1/2 | 1 1/4 | 2.125 | 2.76 | 2.06 | 2-12 |
| 694-20-24 | 1 1/4 | 1 1/2 | 2.500 | 3.15 | 2.33 | 1 11/16-12 |
| 694-24-24 | 1 1/2 | 1 1/2 | 2.500 | 3.15 | 2.33 | 2-12 |
