Tough Jobs Gold PTFE Tape

Thickest and densest PTFE tape for chemical applications where high quality sealing is imperative.

This premium quality tape provides a positive seal with just one and a half wraps. It is tough and durable, and ideally suited to applications which demand exacting standards of reliability. Gold Tape creates positive seals on threaded metal pipe joints.

Gold-PTFE-Teflon-Tape

Click here to buy Gold PTFE tape

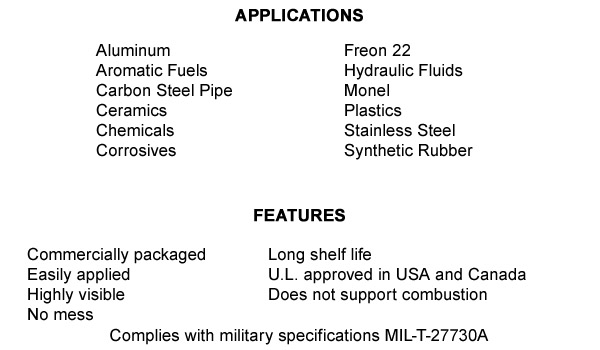

  •  Approved for use by gas utilities world-wide
  • Suitable for use with cyanide service
  • Specially developed for use in critical service wherever applications requiring U.L. or U.L.C. rating is
  • important for insurance.

HOW TO APPLY GOLD PTFE TAPE

To obtain best results when using Gold Tape, always wrap in the direction of the spiral. Begin with the second thread from the end and make two complete wraps…tight enough for the tape to conform to the thread shape. Now press the tape firmly into the grooves and tighten the joint. Gold Tape will fill all the voids and provide a sound, positive seal…every time.

GOLD PTFE TAPE SPECIFICATIONS

  • Material: PTFE
  • Color: Gold
  • Thickness: 0.0045 inch
  • Density: Full
  • Temperature Range: Effective from -450°F to  500°F
  • Max. working pressure: 2500 psig
  • Widths: ¼ , ½ , ¾ , 1 inch
  • (Pipes 2 inch and over should use ¾ inch or 1 inch tape).

Click here to buy Gold PTFE tape

Do you need one of our five other types of PTFE tapes to meet your needs?

Click here for our Economical White PTFE tape

Click here for our Maximum Density Pink PTFE Tape

 Click here for our Oxygen Green PTFE Tape

 Click here for our Yellow PTFE Tape To Use For LP and Natural Gas Connections

 Click here for our PTFE Tape For Stainless & Aluminum
