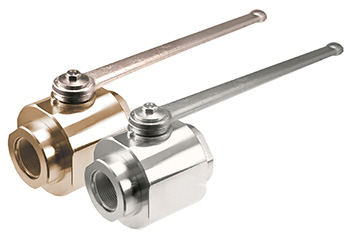

Round Body Female NPT/SAE



Round-BVHP-WP

Quality:

  • Carbon Steel with Zinc Chromate Plating (RoHS Compliant)
  • Unrestricted Bore Available Through 2″ Size
  • POM Seats & Buna O-Rings Standard on Carbon Steel Valves

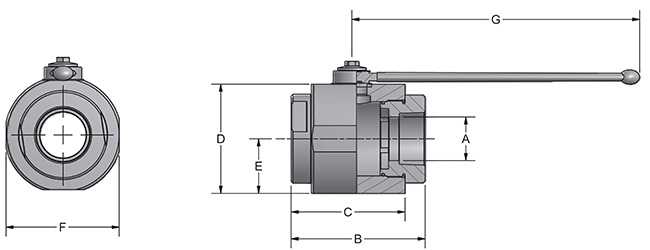

Round-BVHP-DIMENSIONS

NPT SKU SAE SKU PSI MAX A BORE B C D E F G
BVHP-20NPT BVHP-20SAE 5075 1.26 4.53 3.74 3.66 1.83 3.46 11.81
BVHP-24NPT BVHP-24SAE 5075 1.57 5.16 4.25 2.11 2.11 4.02 11.81
BVHP-32NPT BVHP-32SAE 5075 1.97 5.51 4.53 2.24 2.24 4.65 11.81
