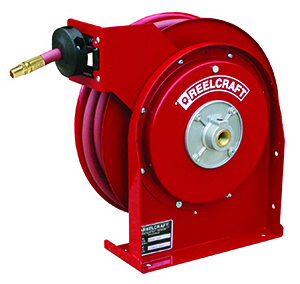

Reelcraft Series 4000/5000/5005 Premium Duty Spring Retractable Hose Reel with Bottom Wind
Features:
- 3 Pressure Choices Available:
- Low Pressure:
- 300 – 500 psi for use with Air and Water
- Furnished with Standard PVC Hose
- Maximum Temperature: With Hose 150°F (65°C) Without Hose 210°F (99°C)
- Medium Pressure:
- 2600 – 3000 psi for use with Oil
- Furnished with S.A.E. 100R1-AT (1/4″ and 3/8″) or S.A.E. 100R17 (1/2″) 1-Wire Braid Hose
- Maximum Temperature 210°F (99°C)
- High Pressure:
- 4800 – 5000 psi for use with Grease
- Furnished with S.A.E. 100R2T 2-Wire Braid Hose
- Maximum Temperature 210°F (99°C)
- Low Pressure:
- All-Steel Construction and Compact for Applications with Critical Space Requirements
- A Full Flow Shaft and Swivel Assures Maximum Product Delivery
- Compressed Air Hoses Should Not be Converted to Oxygen Service – May Cause Explosion when O² Mixes with Fuel
Low Pressure Air/Water Hose Reels
| Quiet Latch | Ratchet Latch with Hose | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| 4400-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 17 |
| 4420-OLP-BW | – | 1/4 | 20 | 300 | 1/4 | 3/8 | 18 |
| 4425-OLP-BW | B4425-OLP-BW | 1/4 | 25 | 300 | 1/4 | 3/8 | 19 |
| 4435-OLP-BW | B4435-OLP-BW | 1/4 | 35 | 300 | 1/4 | 3/8 | 19 |
| 5400-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 20 |
| 5450-OLP-BW | B5450-OLP-BW | 1/4 | 50 | 300 | 1/4 | 3/8 | 26 |
| 4600-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 17 |
| 4617-OLP-BW | – | 3/8 | 17 | 300 | 1/4 | 3/8 | 19 |
| 4625-OLP-BW | B4625-OLP-BW | 3/8 | 25 | 300 | 1/4 | 3/8 | 20 |
| 5600-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 21 |
| 5605-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 31 |
| 5635-OLP-BW | B5635-OLP-BW | 3/8 | 35 | 300 | 1/4 | 3/8 | 25 |
| 5650-OLP-BW | B5650-OLP-BW | 3/8 | 50 | 300 | 1/4 | 3/8 | 36 |
| A5800-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 22 |
| A5805-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 32 |
| A5806-OLP-BW ♦ | – | – | – | 500 | – | 3/8 | 35 |
| A5825-OLP-BW | B5825-OLP-BW | 1/2 | 25 | 300 | 1/2 | 3/8 | 27 |
| A5835-OLP-BW | B5835-OLP-BW | 1/2 | 35 | 300 | 1/2 | 3/8 | 39 |
| A5850-OLP-BW | B5850-OLP-BW | 1/2 | 50 | 300 | 1/2 | 3/8 | 41 |
♦=Hose & Bumper NOT Included
Medium Pressure Hose Reels for Oil
| Quiet Latch SKU | Ratchet Latch with Hose SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| 5400-OMP-BW ♦ | – | – | – | 3000 | – | 3/8 | 23 |
| 5435-OMP-BW | B5435-OMP-BW | 1/4 | 35 | 2750 | 1/4 | 3/8 | 31 |
| 5600-OMP-BW ♦ | – | – | – | 3000 | – | 3/8 | 24 |
| 5630-OMP-BW | B5630-OMP-BW | 3/8 | 30 | 2600 | 3/8 | 3/8 | 31 |
| A5800-OMP-BW ♦ | – | – | – | 3000 | – | 3/8 | 24 |
| A5805-OMP-BW ♦ | – | – | – | 3000 | – | 3/8 | 32 |
| A5825-OMP-BW | B5825-OMP-BW | 1/2 | 25 | 3000 | 1/2 | 3/8 | 34 |
| A5835-OMP-BW | B5835-OMP-BW | 1/2 | 35 | 3000 | 1/2 | 3/8 | 42 |
♦=Hose & Bumper NOT Included
High Pressure Hose Reels for Grease
| Quiet Latch SKU | Ratchet Latch with Hose SKU | Hose ID (in) | Hose Length (ft) | Max psi | NPT Hose Outlet (in) | NPT Reel Inlet (in) | Ship Weight (lbs) |
| 5400-OHP-BW ♦ | – | – | – | 5000 | – | 1/4 | 23 |
| 5405-OHP-BW ♦ | – | – | – | 5000 | – | 1/4 | 33 |
| 5430-OHP-BW | – | 1/4 | 30 | 5000 | 1/4 | 1/4 | 30 |
| 5435-OHP-BW | B5435-OHP-BW | 1/4 | 35 | 5000 | 1/4 | 1/4 | 39 |
| 5600-OHP-BW ♦ | – | – | – | 5000 | – | 1/4 | 26 |
| 5625-OHP-BW | B5625-OHP-BW | 3/8 | 25 | 4800 | 1/4 | 1/4 | 32 |
♦=Hose & Bumper NOT Included
