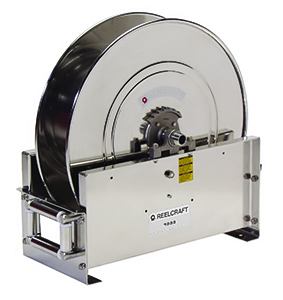

Reelcraft Stainless Steel Series 9000 Corrosion Resistant Spring Retractable Reel with Side Wind

SS D9000





Features:Made In USA

  • Low and Medium Pressure Reels for Air, Water, & Oil
  • Use with 3/8″, 1/2″, 3/4″, or 1″, ID
  • Hose & Bumper NOT Included
  • Standard Latch Parts are Made from Aluminium, Stainless Latch Parts are Available as Standard by Placing a -S at the end (Example:  OLS-S)
  • Series 80000 and D80000 Stainless Reels have an Aluminum Fluid Path
  • Stainless Steel Hose Reels are Ideal for Food Processing, Pre-Rinse, Wash Down, Chemical Transfer and Industrial-Solvent Handing
  • Suitable for Coastal, Off-Shore and On-Board Ship in Marine Applications Where The Harsh Environment of Salt Water Spray Requires the use of Stainless Steel Hose Reels
  • Swivels Include Viton® O-Rings
  • Full-Flow Stainless Steel Shaft and Swivel Assures Maximum Product Delivery
  • Heavy Duty Brackets Eliminate Bending Due to Angular Hose Pull
  • Nylon Guide Rollers Reduce Hose Drag and Abrasion
  • Vibration-Proof Self-Locking Fasteners Assures Assembly Integrity
  • 304L Stainless Steel
  • Maximum Temperature:  150°F  (65°C)



Low and Medium Pressure Stainless Reel

SKU Hose ID (in) Hose Length (ft) Max psi NPT Hose Outlet (in) NPT Reel Inlet (in) Ship Weight (lbs)
D9200-OLS-SW 1/2 75 500 1/2 1/2 115
D9200-OLS-S-SW 1/2 75 500 1/2 1/2 115
D9300-OLS-SW 3/4 75 500 3/4 3/4 116
D9300-OLS-S-SW 3/4 75 500 3/4 3/4 116
D9400-OLS-SW 1 50 500 1 1 117
D9400-OLS-S-SW 1 50 500 1 1 117
D9200-OMS-SW 1/2 75 3000 1/2 1/2 118
D9300-OMS-SW 3/4 50 3000 3/4 3/4 118
D9300-OMS-S-SW 3/4 50 3000 3/4 3/4 118

 Hose & Bumper NOT Included

-S- Stainless Steel Latch Parts Included

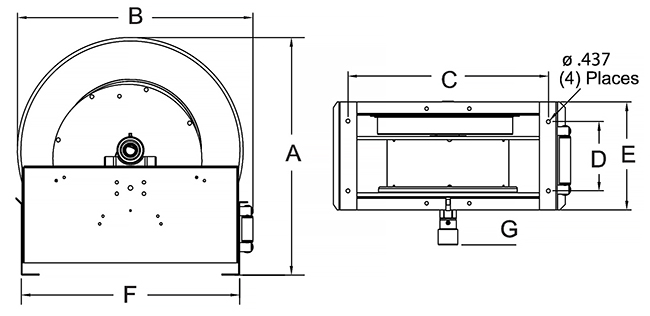

9000-650 diag



SKU A (in) B (in) C (in) D (in) E (in) F (in) G (in)
D9200-OLS-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9200-OLS-S-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9300-OLS-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9300-OLS-S-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9400-OLS-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9400-OLS-S-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9200-OMS-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9300-OMS-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4
D9300-OMS-S-SW 26 3/8 26 1/4 22 1/4 7 3/4 12 24 1/8 4 3/4

Hose & Bumper NOT Included

-S- Stainless Steel Latch Parts Included
