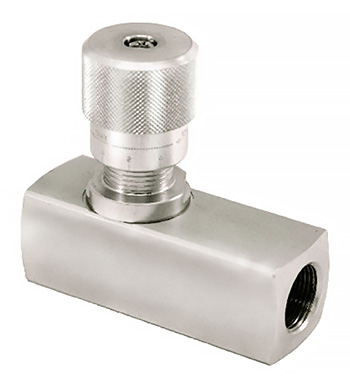

Steel Hydraulic Flow Control Valve
Features:
- Carbon Steel with Zinc Chromate Plating (RoHS Compliant)
- Set Screw Allows Knob to be Locked into Position
- Graduated Knob & Spindle for Accurate Flow Control
- 7 psi Standard Spring Setting
- Buna O-Ring/PTFE Stem Setting
- Temperature Range -4°F to +176°F
- These Valves are for Control of Flow Only; NOT to be Used as Isolation or Shut-Off Valves

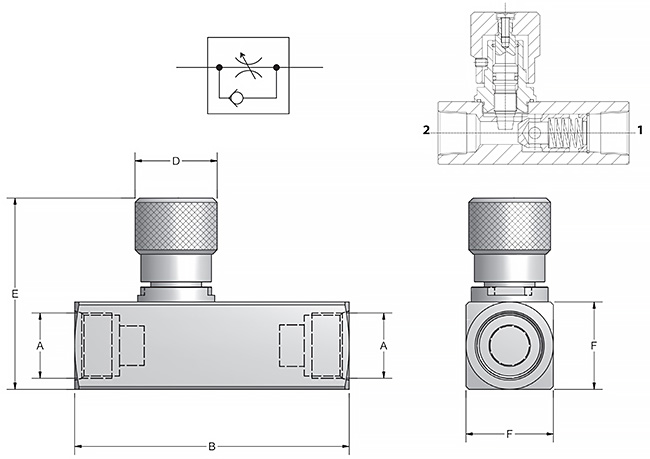

| NPT SKU | SAE SKU | NPT Size | SAE Size | B | D | E | F | Max psi | Max Flow GPM |
| FC04S | FC04S-SAE | 1/4″ | #4 | 2.60 | 1.18 | 2.67 | 0.98 | 5700 | 4 |
| FC06S | FC06S-SAE | 3/8″ | #6 | 3.00 | 1.18 | 2.67 | 0.98 | 5700 | 8 |
| FC08S | FC08S-SAE | 1/2″ | #8 | 3.58 | 1.29 | 2.79 | 1.18 | 5700 | 13 |
| FC12S | FC12S-SAE | 3/4″ | #12 | 4.43 | 1.65 | 3.70 | 1.57 | 5700 | 21 |
| FC16S | FC16S-SAE | 1″ | #16 | 5.55 | 1.65 | 3.93 | 1.77 | 5700 | 40 |
| FC20S | FC20S-SAE | 1-1/4″ | #20 | 6.10 | 2.08 | 4.78 | 2.16 | 4000 | 50 |
| FC24S | FC24S-SAE | 1-1/2″ | #24 | 6.61 | 2.08 | 5.17 | 2.55 | 4000 | 80 |
