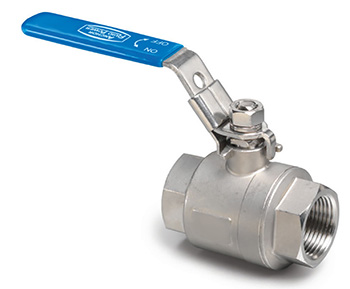

Full Port Stainless 2000 psi Ball Valve
w/Locking Handle
Quality:
- All Stainless Steel Construction
- Locking Handles Standard
- Ideal for Suction, Pressure and Return Lines
- Available in NPT & SAE Threads
| NPT SKU | Size | A | B | C | G |
| BV1302K-04L | 1/4″ | 0.36 | 2.13 | 2.13 | 4.33 |
| BV1302K-06L | 3/8″ | 0.50 | 2.13 | 2.17 | 4.33 |
| BV1302K-08L | 1/2″ | 0.59 | 2.24 | 2.28 | 4.53 |
| BV1302K-12L | 3/4″ | 0.79 | 2.76 | 2.40 | 4.53 |
| BV1302K-16L | 1″ | 0.98 | 3.25 | 3.03 | 5.04 |
| BV1302K-20L | 1-1/4″ | 1.26 | 3.58 | 3.19 | 5.04 |
| BV1302K-24L | 1-1/2″ | 1.50 | 4.06 | 3.54 | 6.10 |
| BV1302K-32L | 2″ | 1.97 | 4.90 | 4.25 | 6.10 |
| SAE SKU | Size | A | B | C | G |
| BV1302K-04BL | 1/4″ | 0.35 | 2.40 | 2.13 | 4.33 |
| BV1302K-06BL | 3/8″ | 0.47 | 2.40 | 2.17 | 4.33 |
| BV1302K-08BL | 1/2″ | 0.59 | 2.52 | 2.28 | 4.53 |
| BV1302K-12BL | 3/4″ | 0.79 | 3.23 | 2.40 | 4.53 |
| BV1302K-16BL | 1″ | 0.98 | 3.62 | 3.03 | 5.04 |
| BV1302K-20BL | 1-1/4″ | 1.26 | 3.96 | 3.19 | 5.04 |
| BV1302K-24BL | 1-1/2″ | 1.50 | 4.23 | 3.54 | 6.10 |
| BV1302K-32BL | 2″ | 1.97 | 4.90 | 4.25 | 6.10 |
